REC2 Bar Lights

Bar Lights
  • Product Features:
  • High density SMD LED, high uniformity, high brightness
  • Use special optical lens to effectively change LED irradiation angle
  • Use standard mold to insure assembly stability and quality
  • Customized emitting area, wavelength and color temperature
  • Optional diffuse board and lens angle available
  • Efficient heat dissipation design to extend LED lifetime
ADD TO INQUIRY DOWNLOAD DM

Product Lineup Table

Series Model Voltage Color Power (W) Dimensions (mm) Diagrams
● ● ● ● Length Width Height

REC

 REC2-41X16 24V ● ● ● ● 1 1.5 53 20 16.6 1
REC2-80X16 24V ● ● ● ● 2 2.5 92 20 16.6 2
REC2-119X16 24V ● ● ● ● 3 4 131 20 16.6 3
REC2-158X16 24V ● ● ● ● 4 6 170 20 16.6 4
REC2-197X16 24V ● ● ● ● 5 6.5 209 20 16.6 5
REC2-74X30 24V ● ● ● ● 3.5 5 86 34 16.6 6
REC2-98X30 24V ● ● ● ● 4.8 6 110 34 16.6 7
REC2-146X30 24V ● ● ● ● 7.2 10 158 34 16.6 8
REC2-170X30 24V ● ● ● ● 8.4 11 182 34 16.6 9
REC2-194X30 24V ● ● ● ● 9.5 12 206 34 16.6 10
REC2-218X30 24V ● ● ● ● 10.7 15 230 34 16.6 11
REC2-266X30 24V ● ● ● ● 13 17 278 34 16.6 12
REC2-290X30 24V ● ● ● ● 14.2 18 302 34 16.6 13
REC2-386X30 24V ● ● ● ● 19.2 24 398 34 16.6 14
REC2-434X30 24V ● ● ● ● 21.5 30 446 34 16.6 15
REC2-578X30 24V ● ● ● ● 28.8 36 590 34 16.6 16

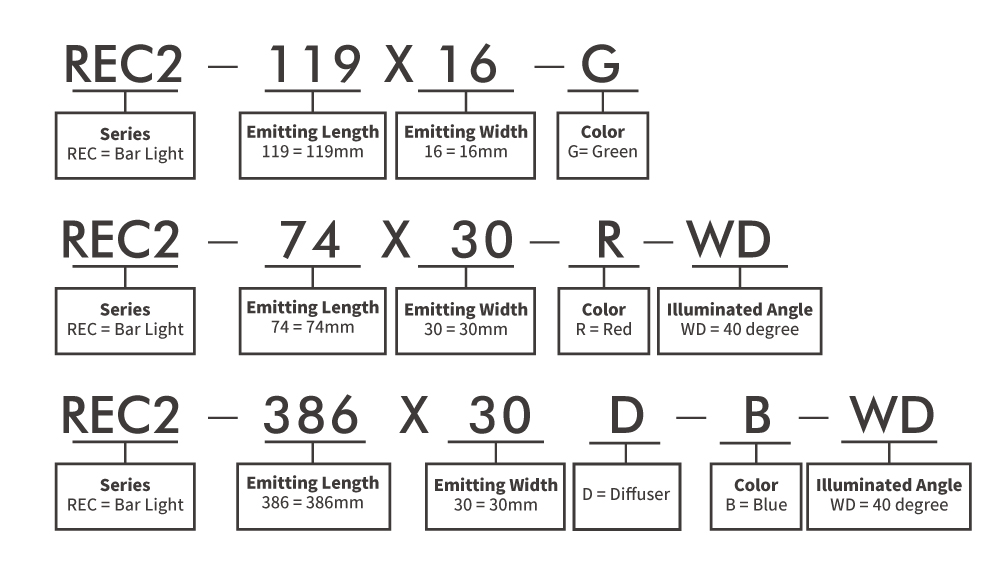

Model Guide

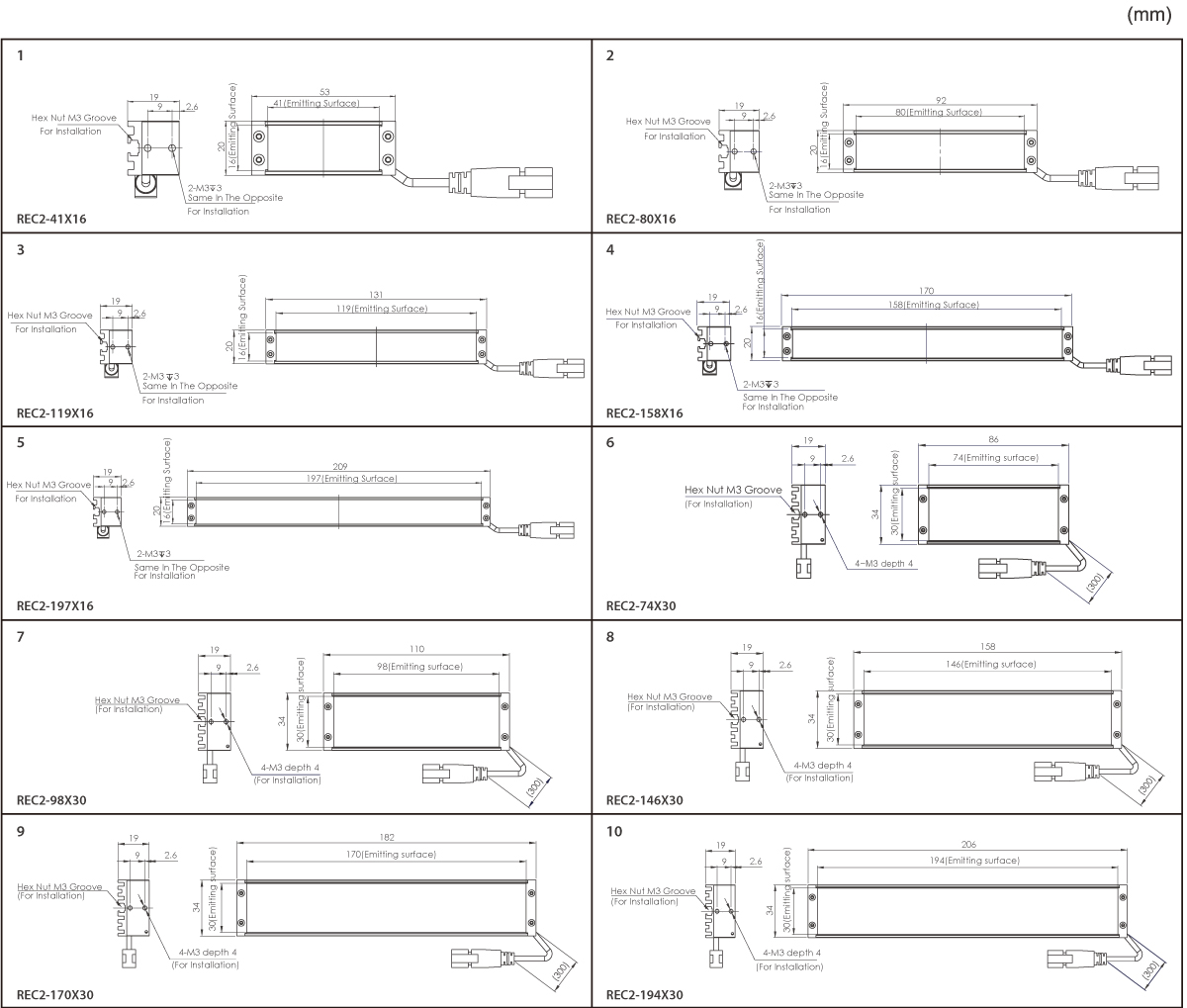

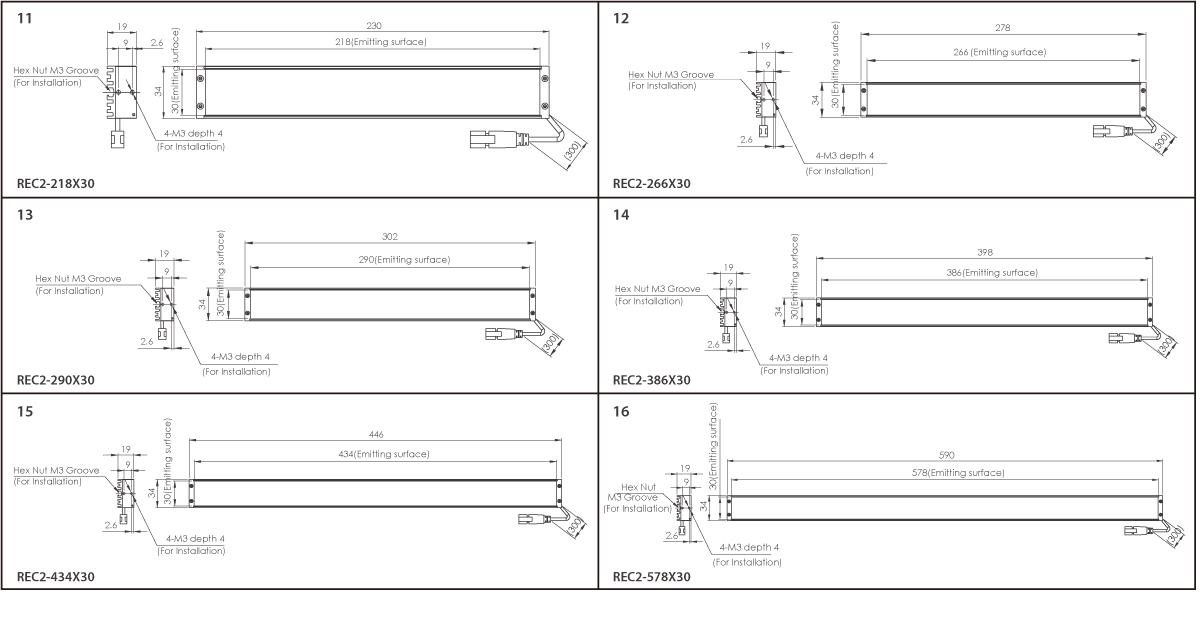

Dimensional Drawing

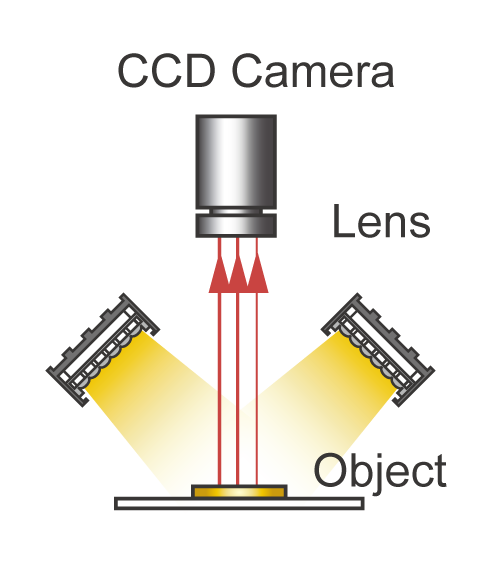

Illumination Structure


Illuminated angle diagram
