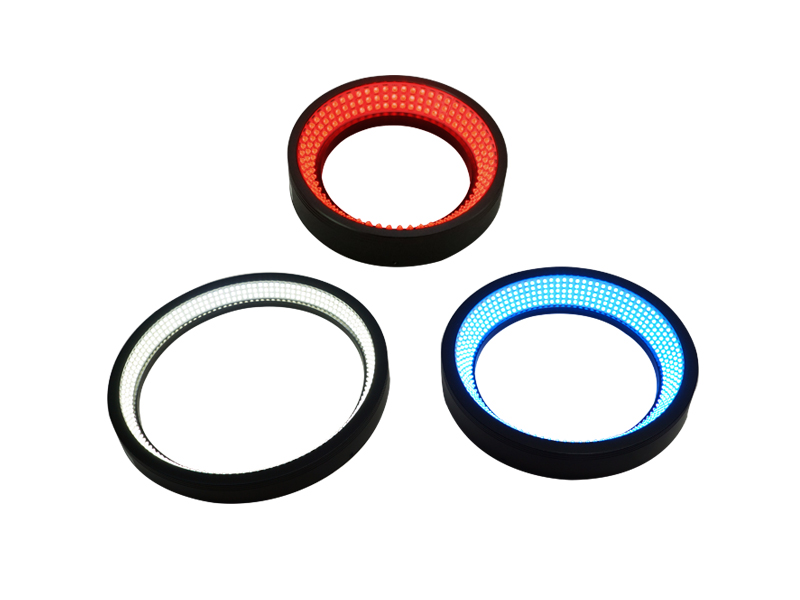

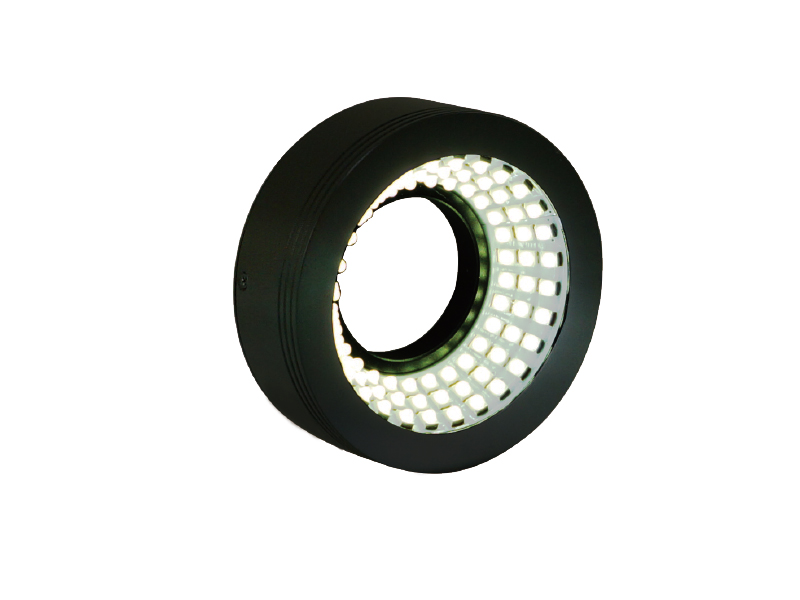

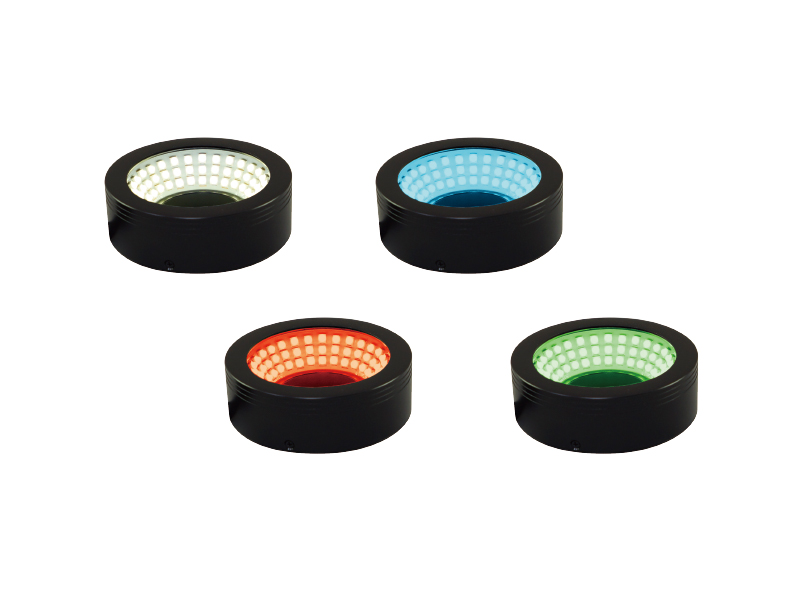

LCIR2 Low Angle Ring Lights

Ring Lights
  • Product Features:

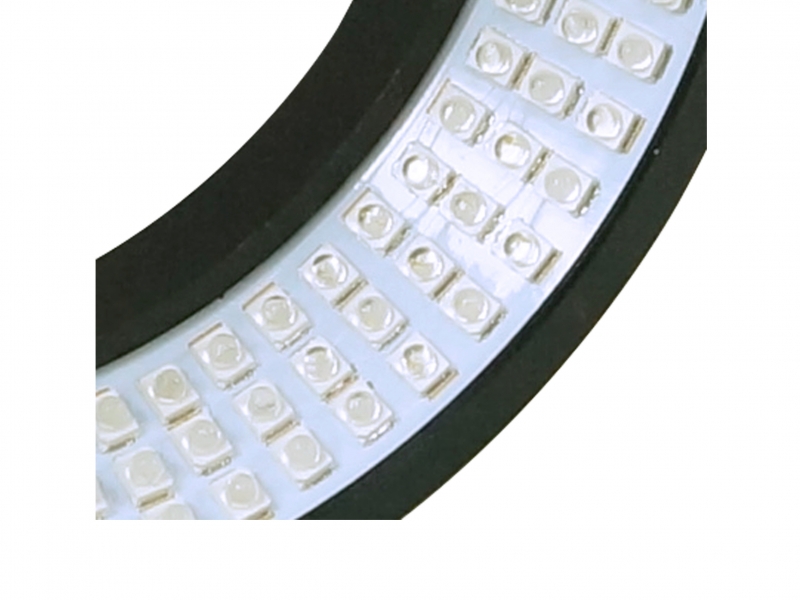

  • High density LED array, high brightness
  • Customized LED beam angle and illumination angle available
  • Compact design to save the installation space
  • SMT/Reflow technology to assure product quality and production efficiency
ADD TO INQUIRY DOWNLOAD DM

Product Lineup Table

Series Model Voltage Color Power (W) Dimensions (mm) Diagrams
● ● ● ● O.D. I.D. Angle

LCIR2

 LCIR2-4318-30 24V ● ● ● ● 2.6 2.6 43 18 30 1
LCIR2-4820-30 24V ● ● ● ● 2.8 3.2 48 20 30 2
LCIR2-5022-30 24V ● ● ● ● 3.1 3.2 50 22 30 3
LCIR2-6630-30 24V ● ● ● ● 5.5 6.5 66 30 30 4
LCIR2-7446-30 24V ● ● ● ● 4.5 5 74 46 30 5
LCIR2-10070-30 24V ● ● ● ● 8.5 9.1 100 70 30 6
LCIR2-13296-15 24V ● ● ● ● 14 16 132 96 15 7
LCIR2-150120-30 24V ● ● ● ● 17 20 150 120 30 8
LCIR2-170134-20 24V ● ● ● ● 20 20 170 134 20 9
LCIR2-180132-30 24V ● ● ● ● 26 30 180 132 30 10
LCIR2-208171-25 24V ● ● ● ● 20 20 208 171 25 11

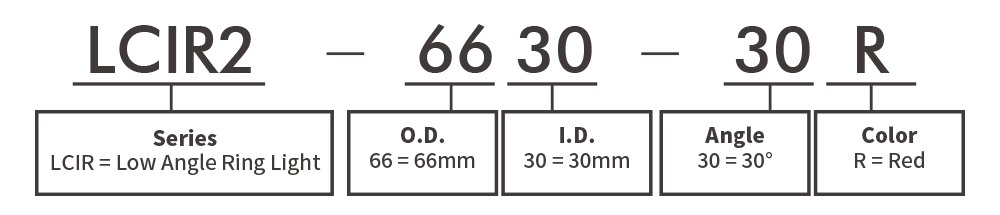

Model Guide

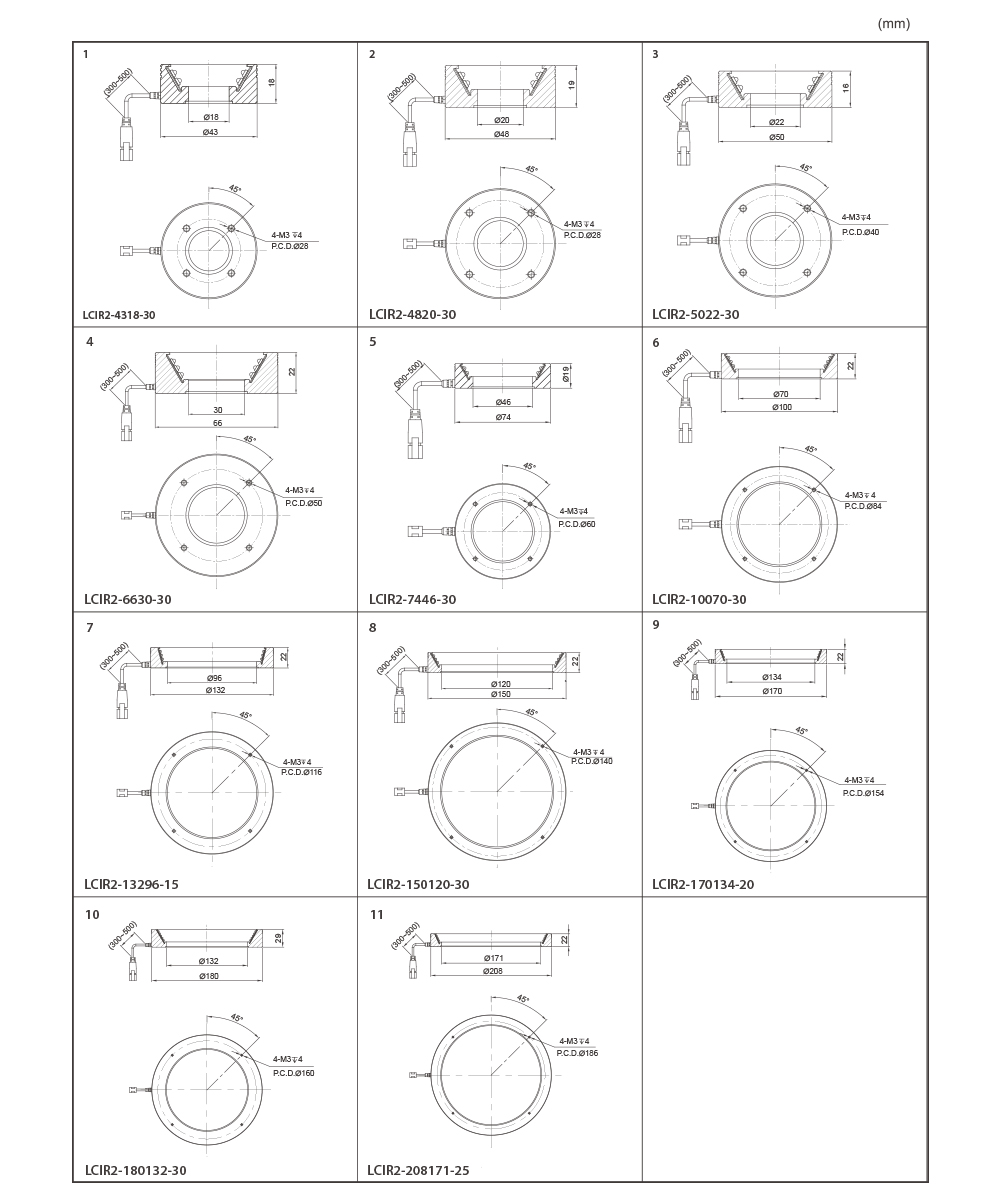

Dimensional Drawing

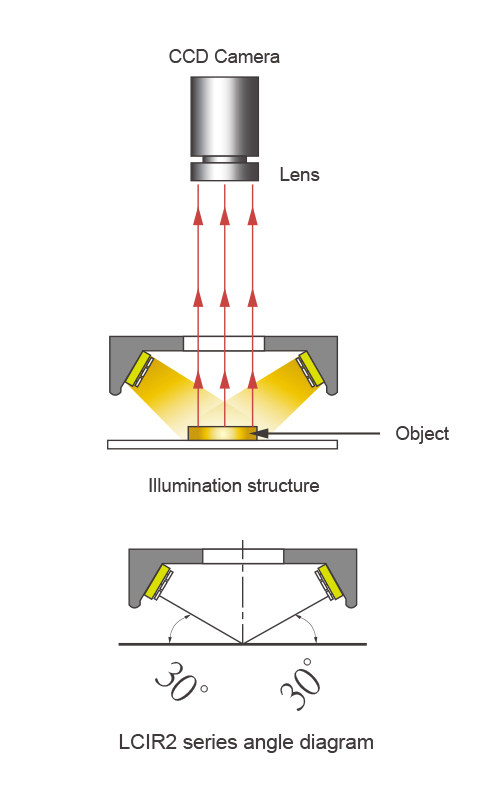

Illumination Structure
