Our Products
Machine Vision Solution

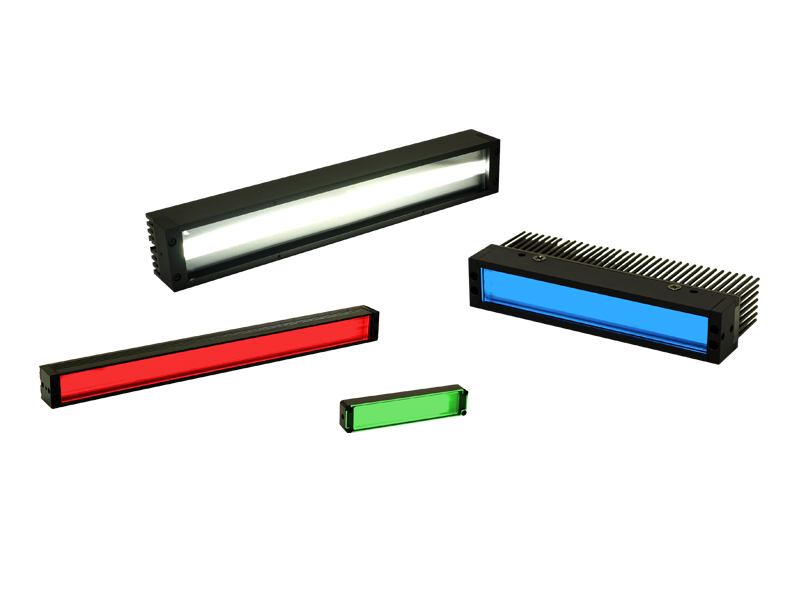

TLL 薄型線光源
線光源
- 產品功能:
- 適用於高速/高解析度的Line Scan取像
- 超高均勻度，薄型化設計，更利於多角度光學架設
- 無風扇設計，提供600K Lux以上優異亮度表現
- OD系列提供overdrive閃頻最高至1.5x~2x亮度
系列規格表
| Series |
Model |
Color |
Current / Power |
Dimensions (mm) |

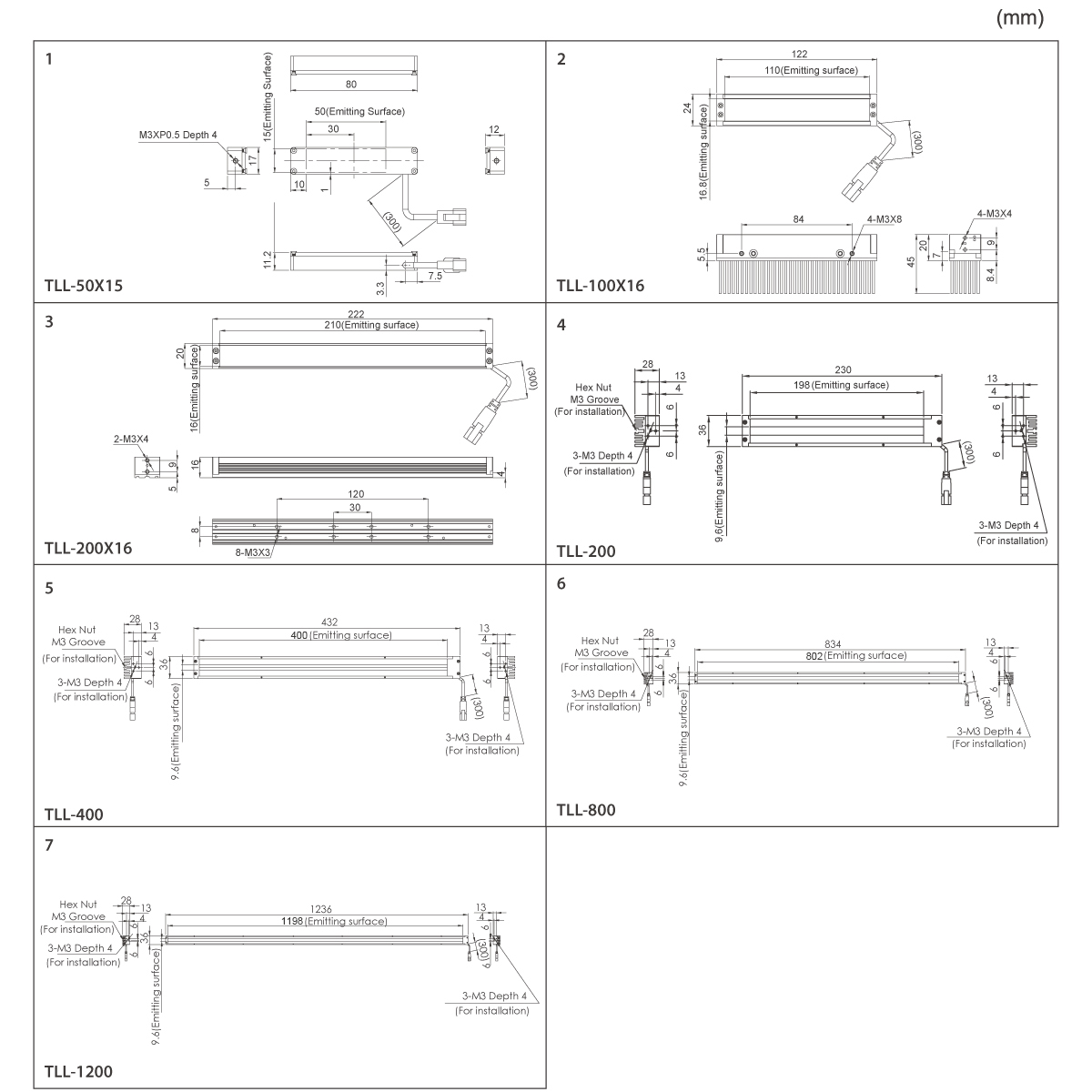

Diagrams |
| Length |
Width |
Height |
|
TLL
|
TLL-50X15 |
● ● ● ● |
0.2A / 4W |
80 |
17 |
12 |
1 |
| TLL-100X16 |
● ● ● ● |
Continuous : 0.25A / 10W
Strobe : 0.5A / 20W |
122 |
24 |
45 |
2 |
| TLL-200X16 |
● ● ● ● |
0.25A / 10W |
222 |
20 |
16 |
3 |
| TLL-200 |
● ● ● ● |
Continuous : 0.6A / 20W
Strobe : 0.9A / 32W |
230 |
36 |
28 |
4 |
| TLL-400 |
● ● ● ● |
0.8A / 35W |
432 |
36 |
28 |
5 |
| TLL-800 |
● ● ● ● |
1.6A / 70W |
834 |
36 |
28 |
6 |
| TLL-1200 |
● ● ● ● |
2.5A / 120W |
1236 |
36 |
28 |
7 |
註：僅限搭配定電流驅動器，並請注意額定電流。
