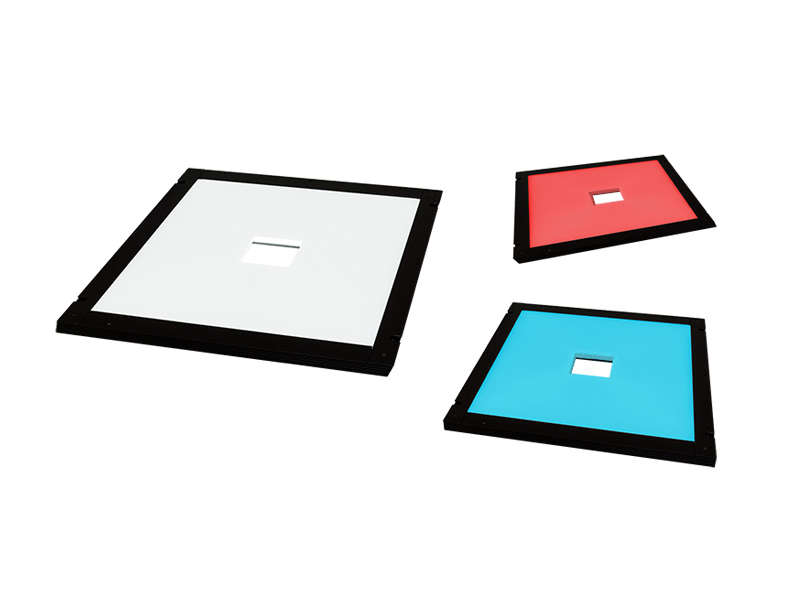

SHBL 側部開孔背光源
背光源
- 產品功能:

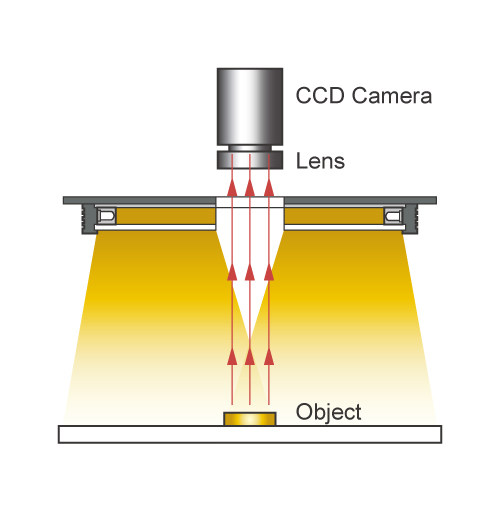

- 超薄設計與中心開孔以利相機穿孔安裝
- 適合高均勻度要求的大面積照明
- 照射非反射物體時,能夠取代同軸照明並節省空間
- 可客製發光面積、開孔大小與光源波長、色溫
系列規格表
Series |

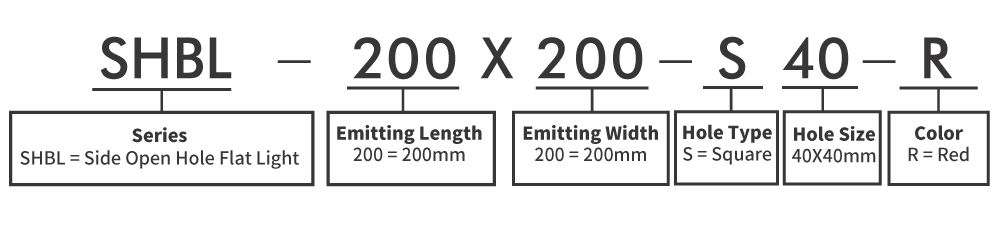

Model |
Voltage |
Color |
Power (W) |
Dimensions (mm) |
Type |
Hole Size(mm) |

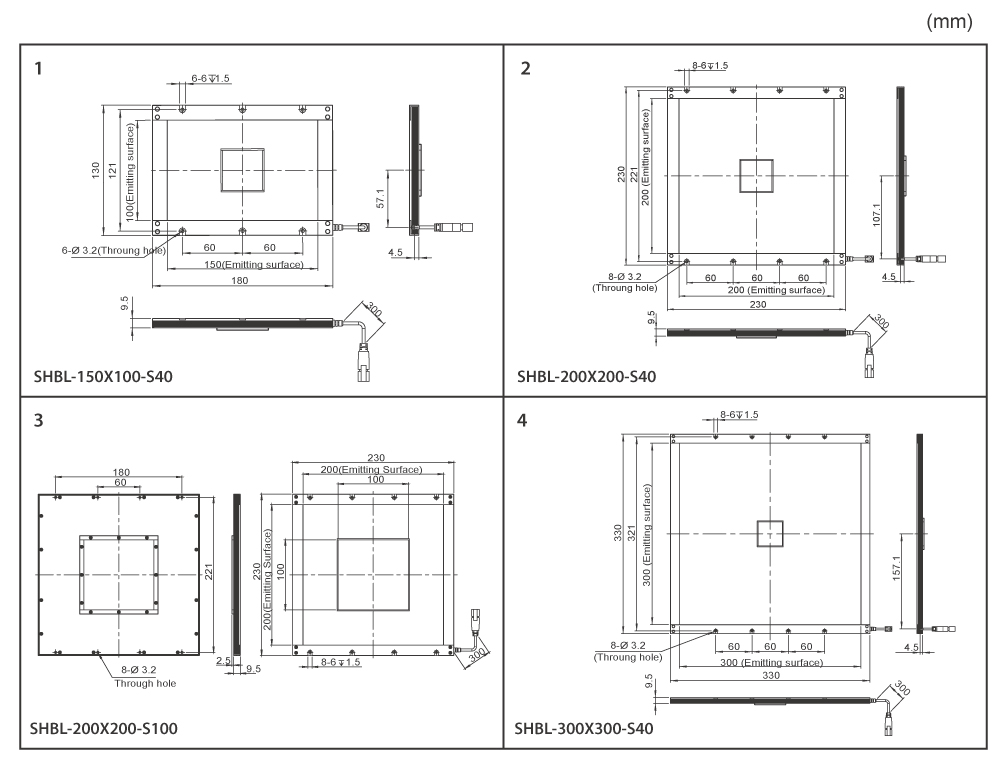

Diagrams |
● |
● ● ● |
Length |
Width |
Height |
SHBL
|
SHBL-150X100-S40 |
24V |
● ● ● ● |
6 |
6 |
180 |
130 |
9.5 |
Side Type |
40X40 Square |
1 |
SHBL-200X200-S40 |
24V |
● ● ● ● |
12 |
15 |
230 |
230 |
9.5 |
Side Type |
40X40 Square |
2 |
SHBL-200X200-S100 |
24V |
● ● ● ● |
15 |
15 |
230 |
230 |
9.5 |
Side Type |
100X100 Square |
3 |
SHBL-300X300-S40 |
24V |
● ● ● ● |
26 |
26 |
330 |
330 |
9.5 |
Side Type |
40X40 Square |
4 |
SHBL-340X340-S40 |
24V |
● ● ● ● |
24 |
24 |
370 |
370 |
9.5 |
Side Type |
40X40 Square |
5 |
SHBL-600X400-S35 |
24V |
● ● ● ● |
36 |
36 |
630 |
430 |
10.5 |
Side Type |
35X35 Square |
6 |
SHBL-600X400-S60 |
24V |
● ● ● ● |
36 |
36 |
630 |
430 |
10.5 |
Side Type |
60X60 Square |
7 |
