Machine Vision Solution

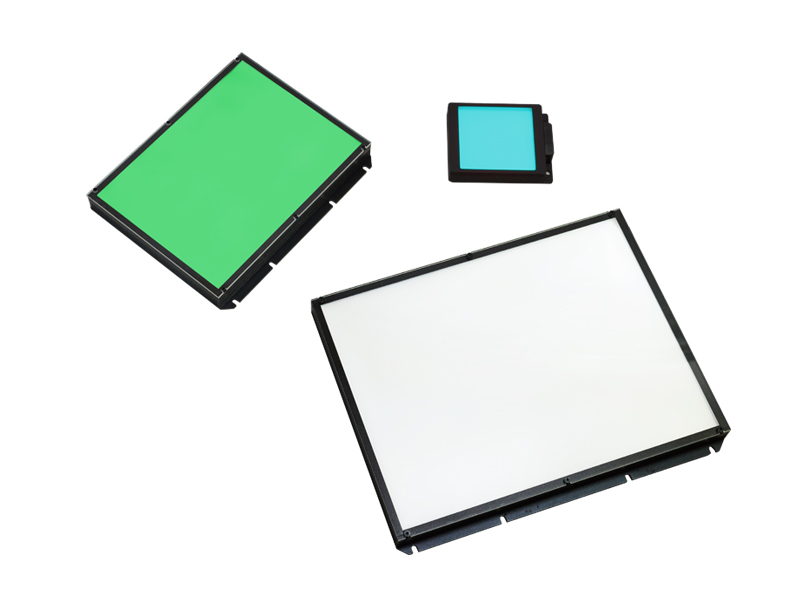

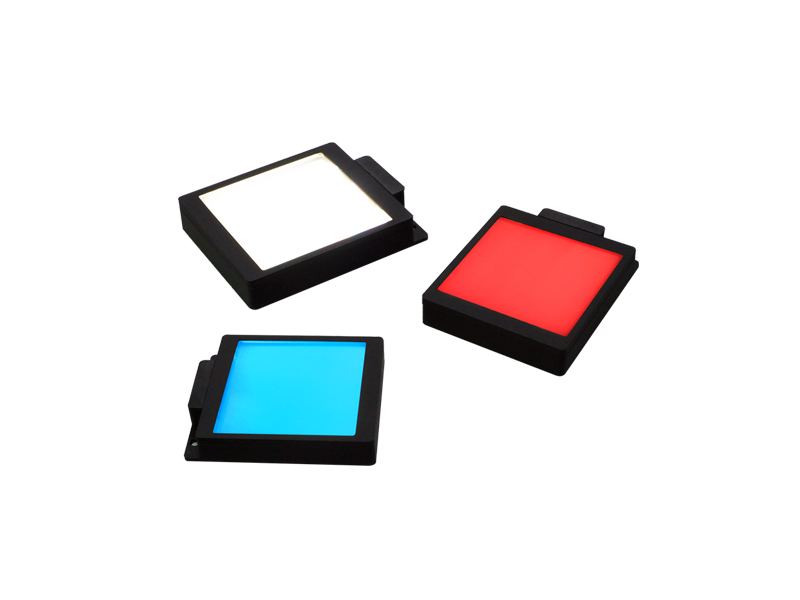

PBL 平行背光源
背光源
- 產品功能:

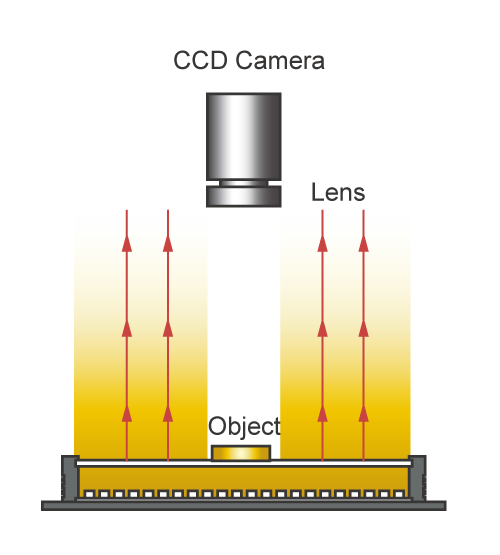

- 獨特導光材料提供均勻擴散光源

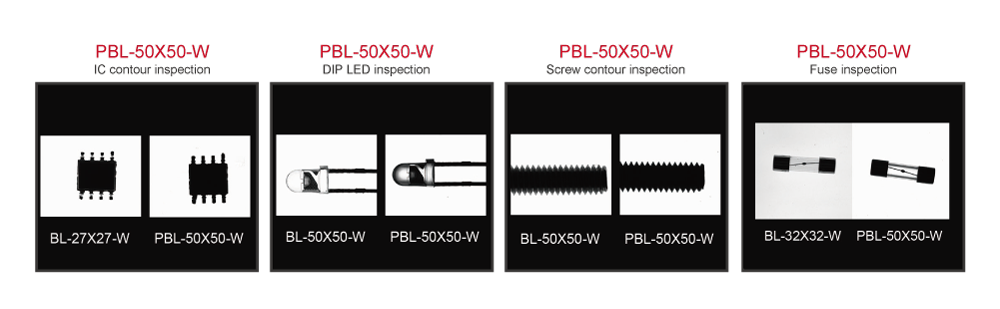

- 適合外觀檢查與尺寸量測
- 標準模具製作，小型化結構，節省安裝空間
- 可客製發光面積與光源波長、色溫
系列規格表

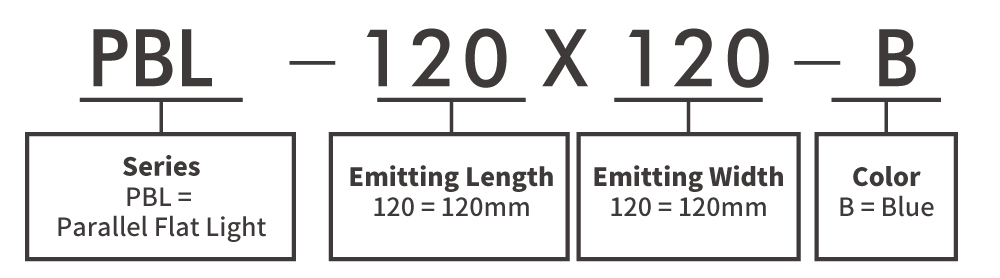

| Series |
Model |
Voltage |
Color |
Power (W) |
Dimensions (mm) |

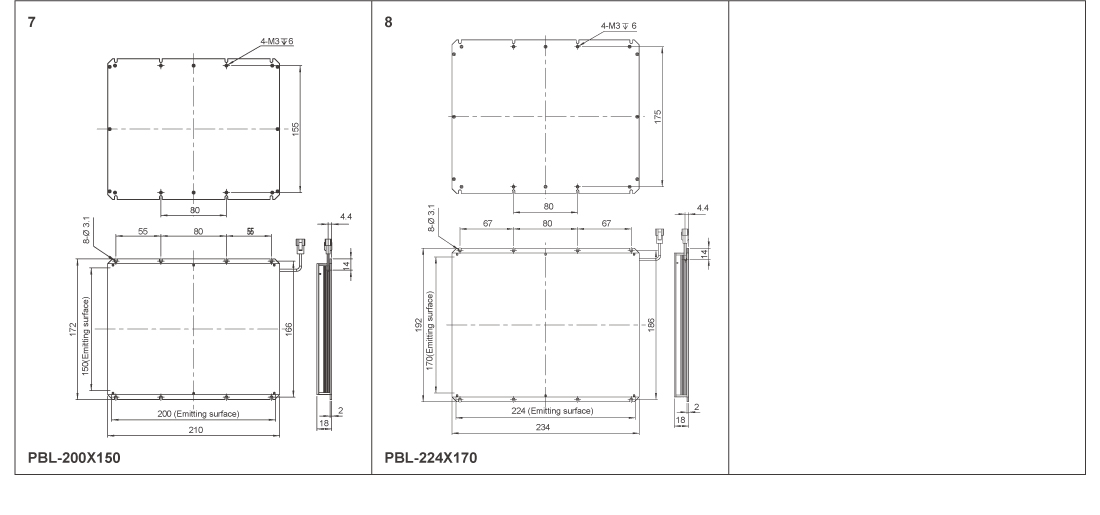

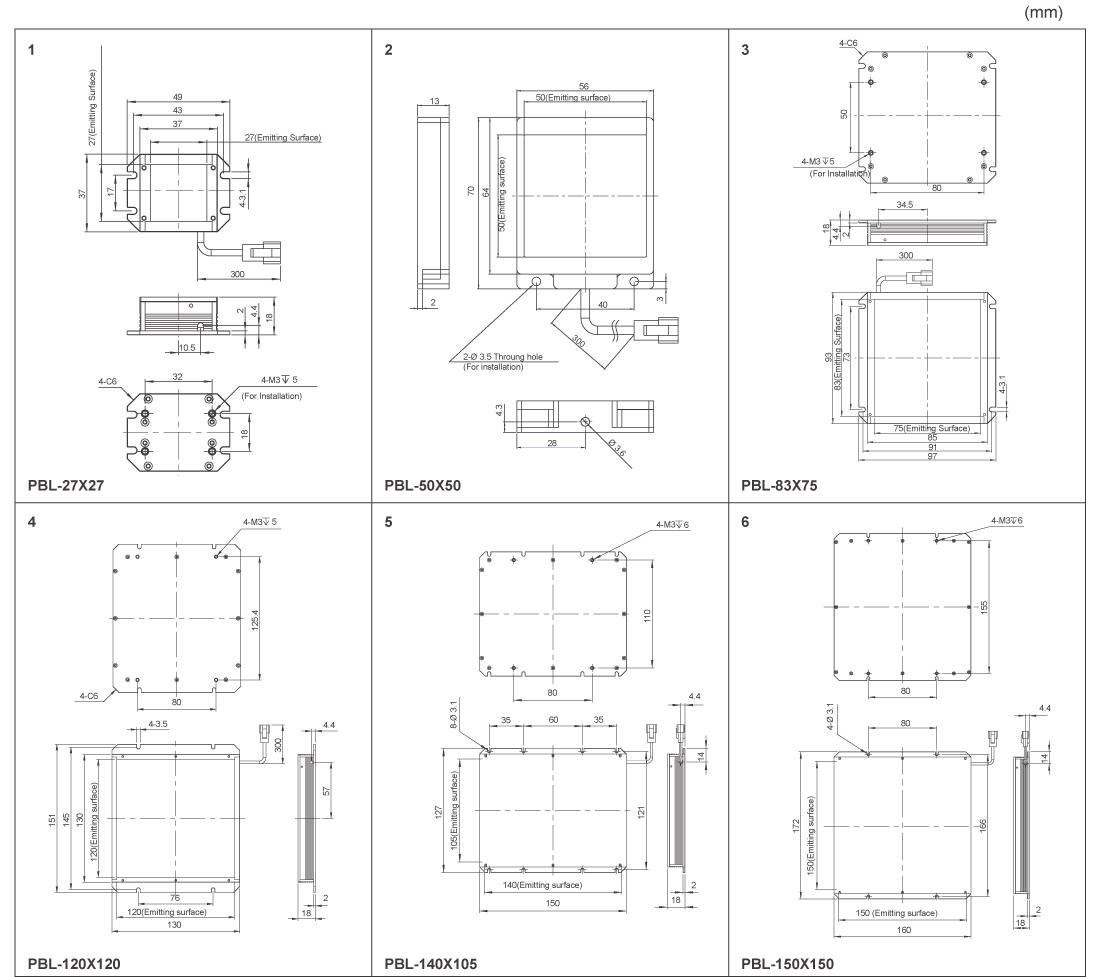

Diagrams |
| ● |
● ● ● |
Length |
Width |
Height |
|
PBL
|
PBL-27X27 |
24V |
● ● ● ● |
1 |
1.5 |
49 |
37 |
18 |
1 |
| PBL-50X50 |
24V |
● ● ● ● |
5 |
5 |
70 |
56 |
13 |
2 |
| PBL-83X75 |
24V |
● ● ● ● |
6.5 |
10 |
97 |
93 |
18 |
3 |
| PBL-120X120 |
24V |
● ● ● ● |
16 |
20 |
151 |
130 |
18 |
4 |
| PBL-140X105 |
24V |
● ● ● ● |
12.5 |
19 |
150 |
127 |
18 |
5 |
| PBL-150X150 |
24V |
● ● ● ● |
20 |
28 |
172 |
160 |
18 |
6 |
| PBL-200X150 |
24V |
● ● ● ● |
21.8 |
32 |
210 |
172 |
18 |
7 |
| PBL-224X170 |
24V |
● ● ● ● |
26.5 |
35.8 |
234 |
192 |
18 |
8 |
