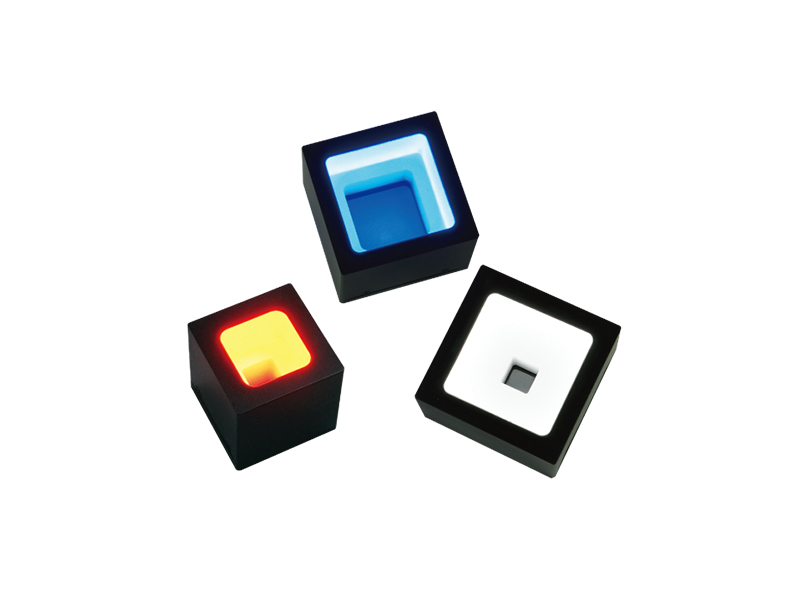

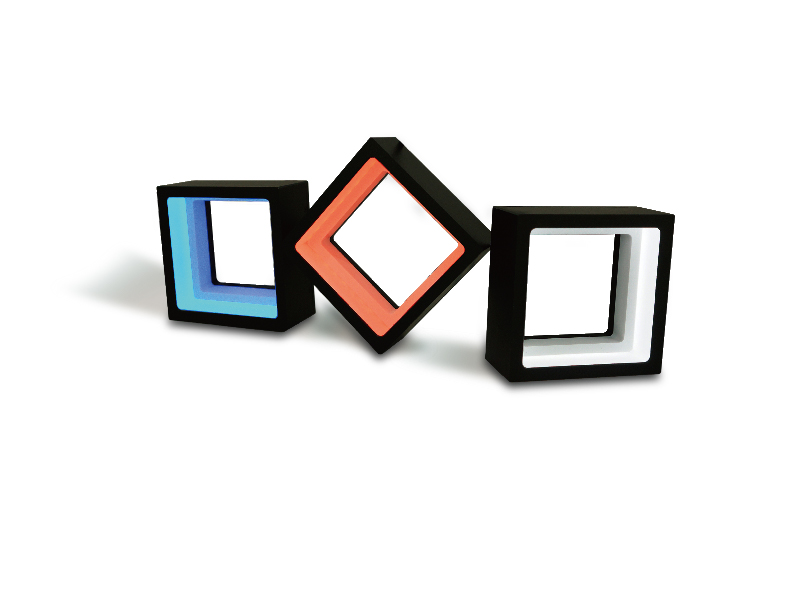

QNS 方型無影光源
無影光源
- 產品功能:

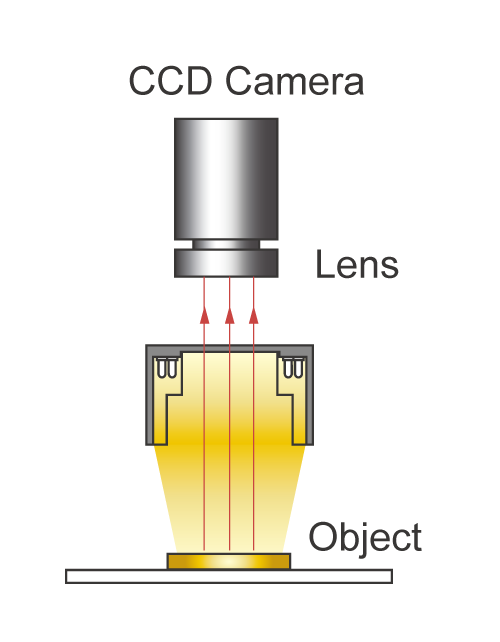

- LED均勻排列穿透特殊導光板形成漫射光源
- 高亮度與高均勻度
- 適用於要求高均勻度的邊緣照射並消除反光干擾
系列規格表
| Series |

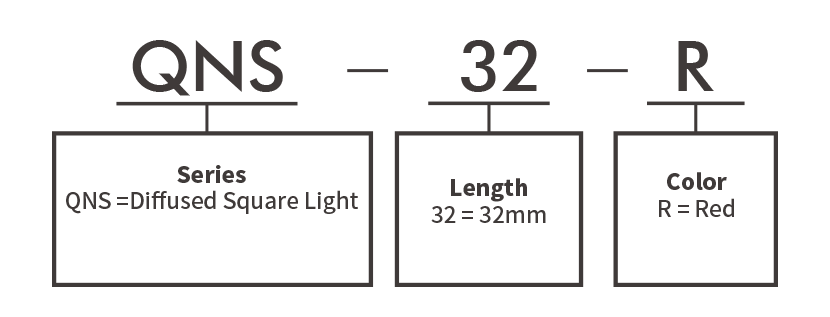

Model |
Voltage |
Color |
Power (W) |
Dimensions (mm) |
Diagrams |
| ● |
● ● ● |
Length |
Width |
Height |
|
QNS
|
QNS-20 |
24V |
● ● ● ● |
1 |
2.5 |
20 |
5 |
23 |
1 |
| QNS-32 |
24V |
● ● ● ● |
2.5 |
4.5 |
32 |
10 |
32 |
2 |
| QNS-48 |
24V |
● ● ● ● |
3.5 |
5 |
49 |
26 |
32 |
3 |
| QNS-75 |
24V |
● ● ● ● |
5 |
8.5 |
76 |
53 |
32 |
4 |
| QNS-96 |
24V |
● ● ● ● |
7 |
11.5 |
97 |
74 |
32 |
5 |
| QNS-120 |
24V |
● ● ● ● |
11 |
15 |
120 |
98 |
30 |
6 |
