Our Products
Machine Vision Solution

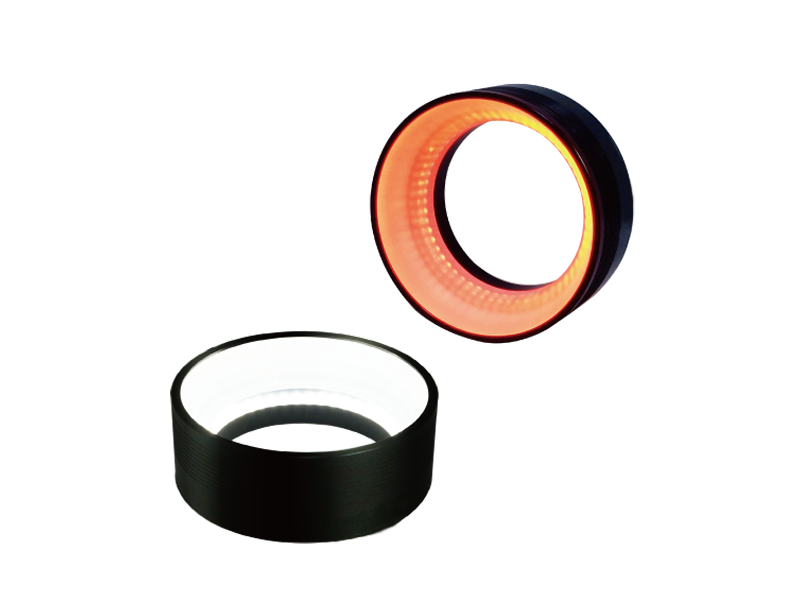

LCNS 環型低角度無影光源
無影光源
- 產品功能:
- 高密度LED垂直排列

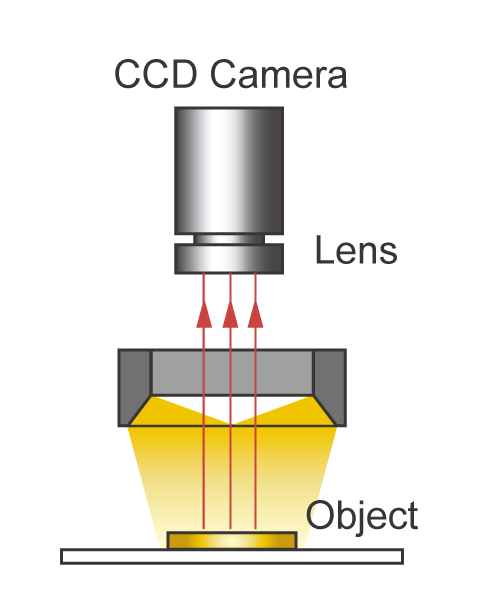

- 採用特殊材料使光源低角度均勻漫射

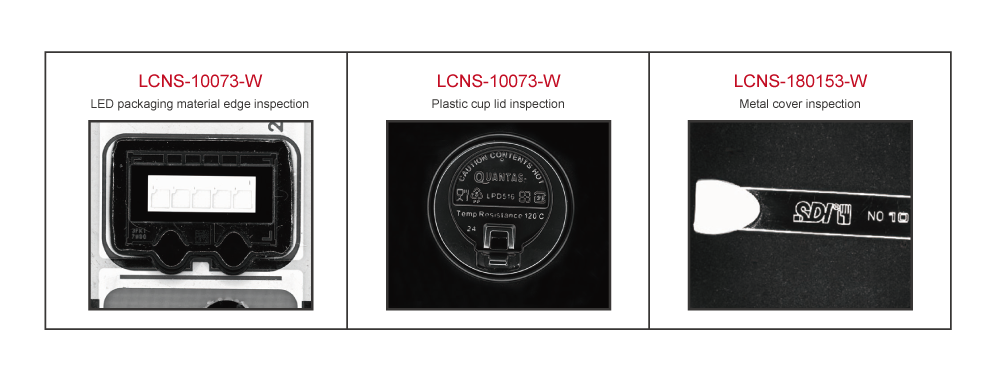

- 適合檢測物體的邊緣與表面刮傷
系列規格表
| Series |
Model |
Voltage |
Color |
Power (W) |
Dimensions (mm) |

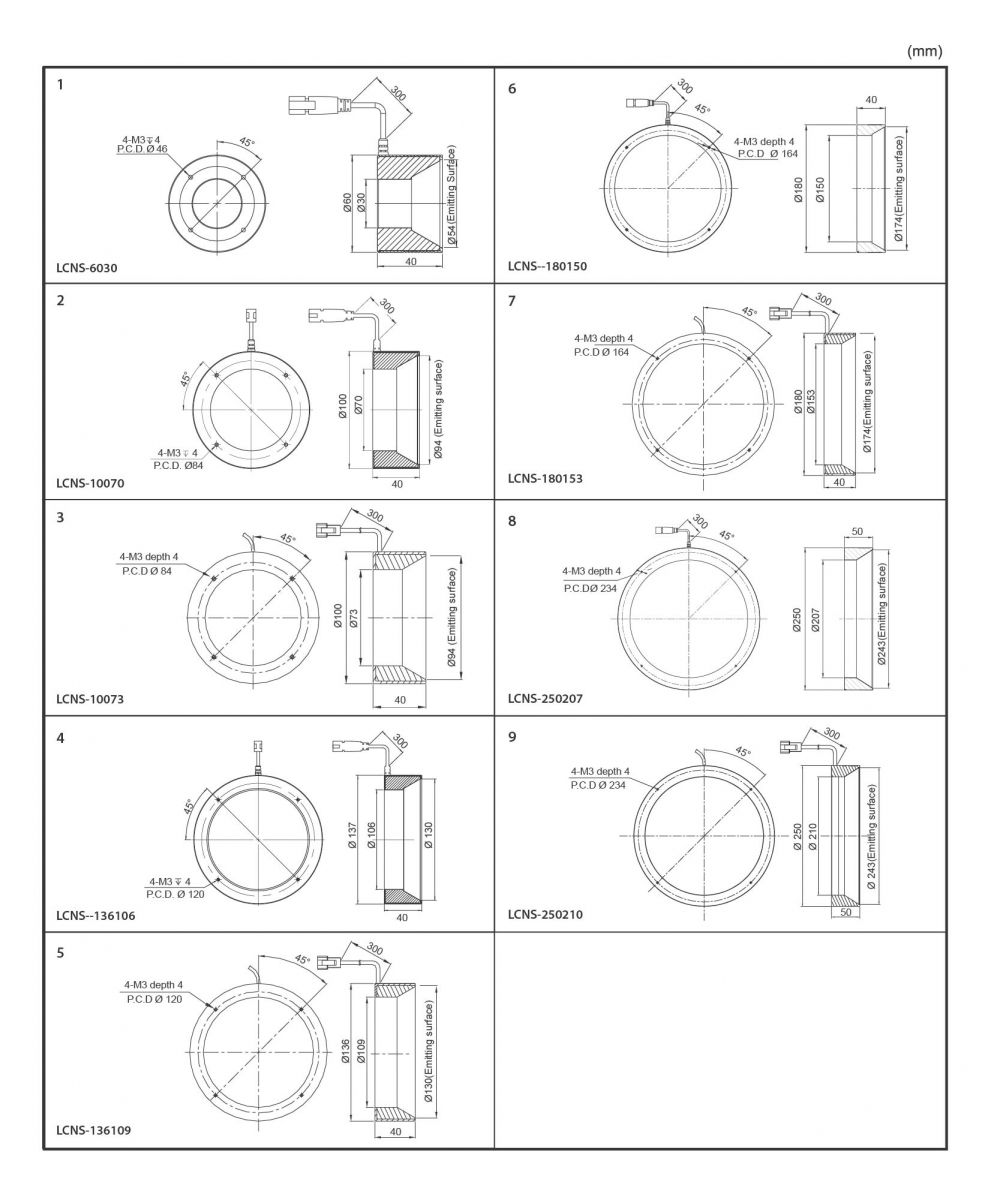

Diagrams |
| ● |
● ● ● |
O.D. |
I.D. |
Height |
|
LCNS
|
LCNS-6030 |
24V |
● ● ● ● |
3.6 |
4.5 |
60 |
30 |
40 |
1 |
| LCNS-10070 |
24V |
● ● ● ● |
6 |
7.6 |
100 |
70 |
40 |
2 |
| LCNS-10073 |
24V |
● ● ● ● |
6 |
7.6 |
100 |
73 |
40 |
3 |
| LCNS-136106 |
24V |
● ● ● ● |
5.2 |
8.6 |
136 |
106 |
40 |
4 |
| LCNS-136109 |
24V |
● ● ● ● |
5.2 |
8.6 |
136 |
109 |
40 |
5 |
| LCNS-180150 |
24V |
● ● ● ● |
12 |
13.5 |
180 |
150 |
40 |
6 |
| LCNS-180153 |
24V |
● ● ● ● |
12 |
13.5 |
180 |
153 |
40 |
7 |
| LCNS-250207 |
24V |
● ● ● ● |
15 |
22 |
250 |
207 |
50 |
8 |
| LCNS-250210 |
24V |
● ● ● ● |
15 |
22 |
250 |
210 |
50 |
9 |
