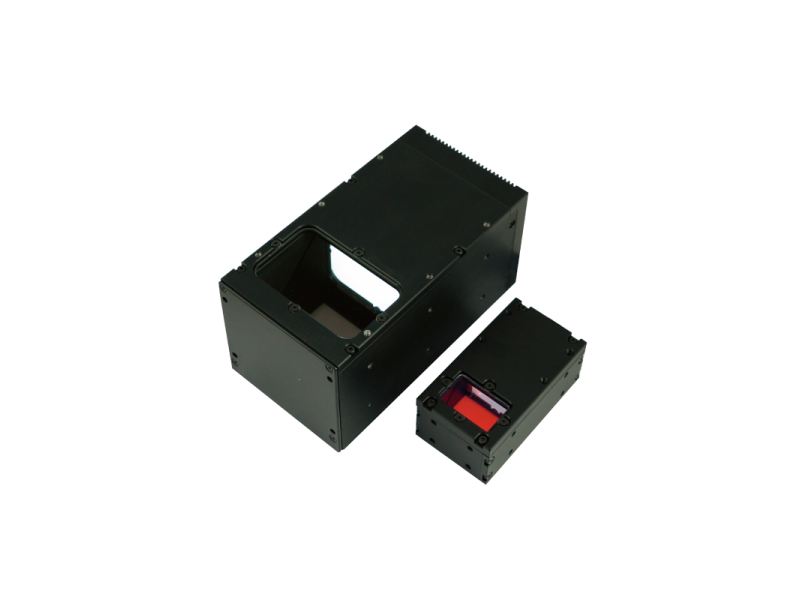

PCL 平行同軸光源
同軸光源
- 產品功能:
- 採用特殊光學照明設計提供高均勻度光源

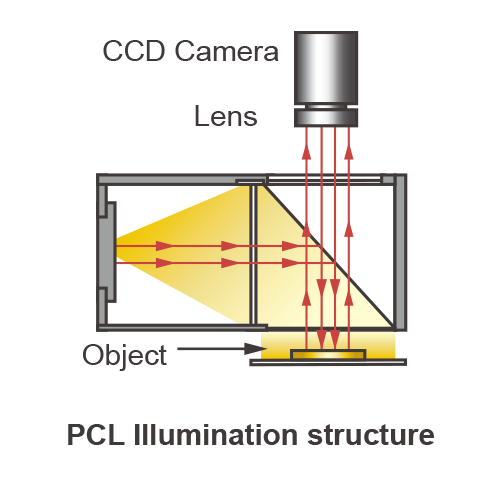

- 運用多層光學鏡片創造平行光源
- 使用特殊高階鍍膜分光鏡，提供高品質的光學效果

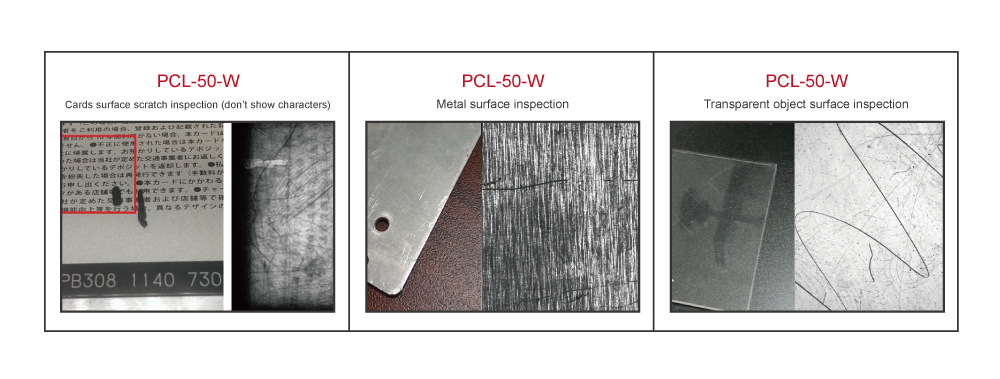

- 適合高反射率產品平整度檢測使用
系列規格表
| Series |
Model |
Color |
Current / Power |
Dimensions (mm) |
Diagrams |
| ● |
● ● ● |
Length |
Width |
Height |
|
PCL
|
PCL-30 |
● ● ● ● |
0.7A / 3W |
0.7A / 3W |
73 |
40 |
29 |
1 |
| PCL-50 |
● ● ● ● |
1A / 5W |
1.5A / 5W |
130.8 |
69 |
65.8 |
2 |

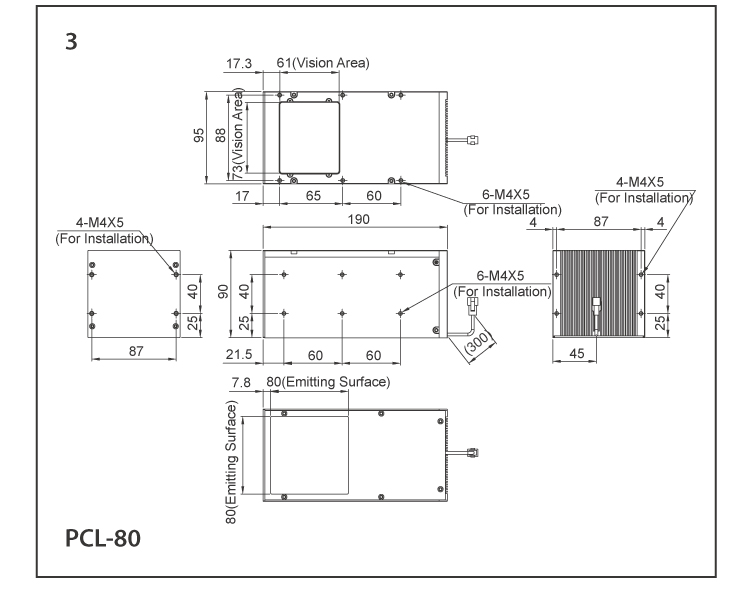

| PCL-80 |
● ● ● ● |
1.5A / 5W |
1A / 5W |
190 |
95 |
90 |
3 |
| Series |
Model |
Color |
Current / Power |
Dimensions (mm) |
Diagrams |
| Length |
Width |
Height |

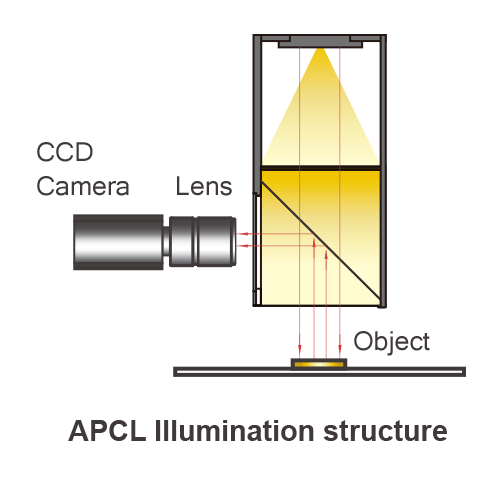

| APCL |
APCL-50 |
● ● ● ● |
1.5A / 5W |
130.8 |
69 |
65.8 |
4 |
註：僅限搭配定電流驅動器，並請注意額定電流。
