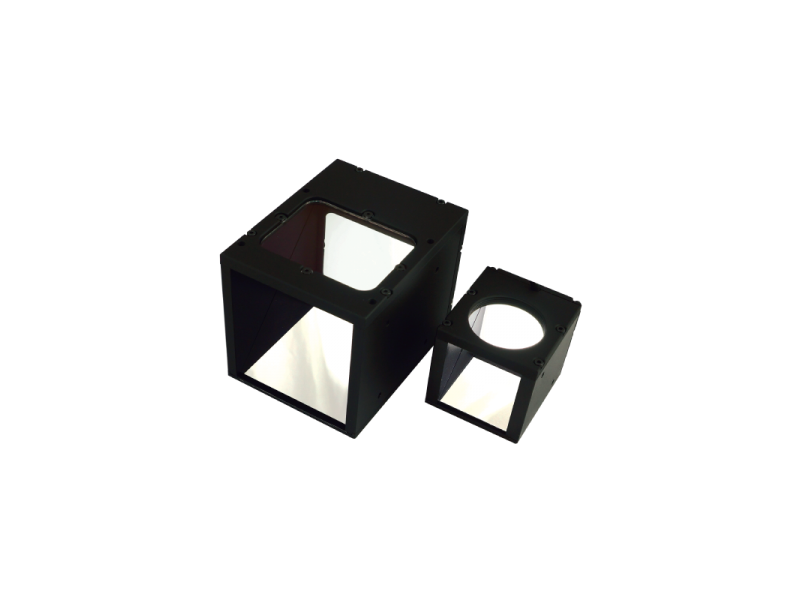

ACL 轉角同軸光源
同軸光源
- 產品功能:
- 高密度SMD LED排列提供高亮度照明效果
- 特殊熱傳導材料提供絕佳散熱效果與高穩定性
- 精巧結構設計不需風扇散熱

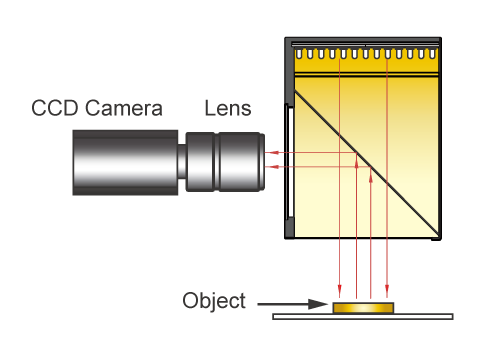

- 特殊鍍膜片提供高品質光學效果
- 90度轉角設計可節省安裝空間
系列規格表
| Series |
Model |
Voltage |
Color |
Power (W) |
Dimensions (mm) |

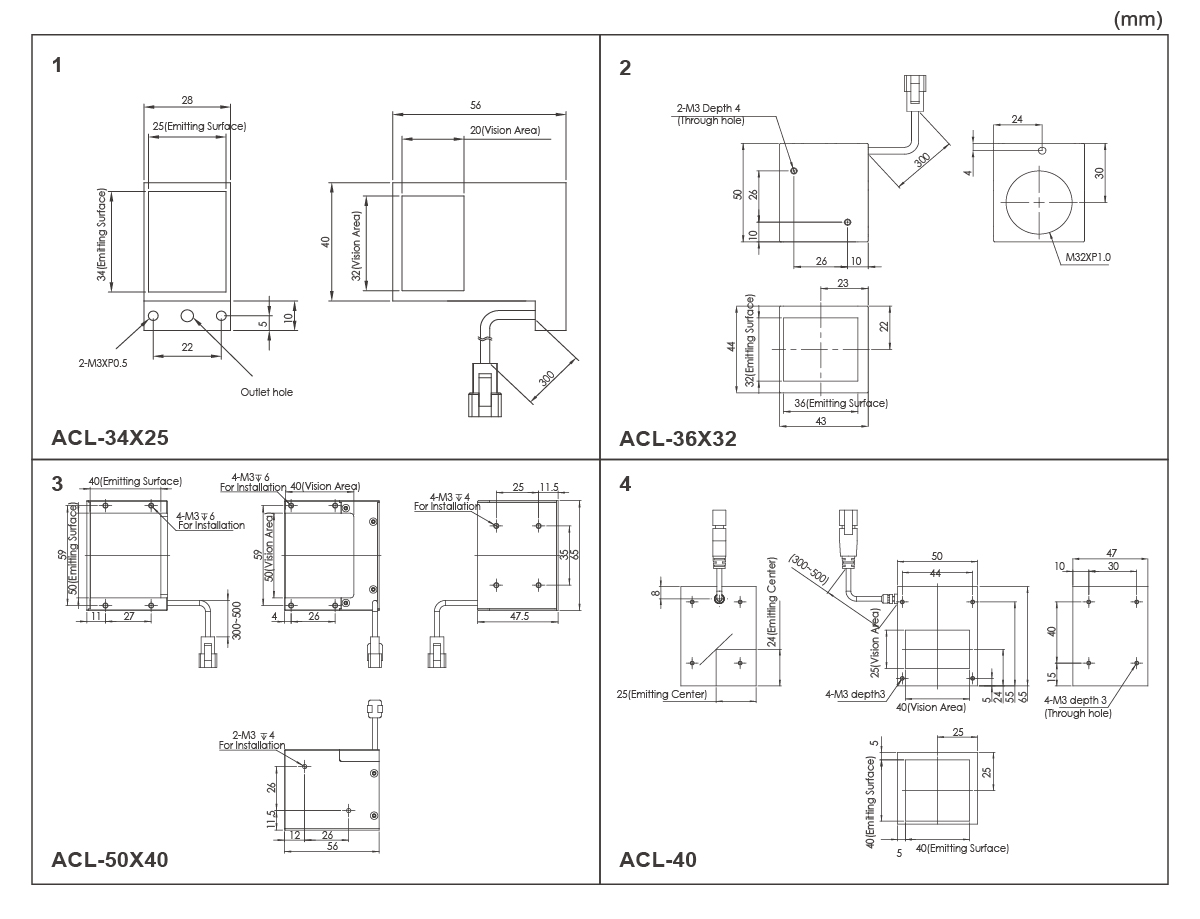

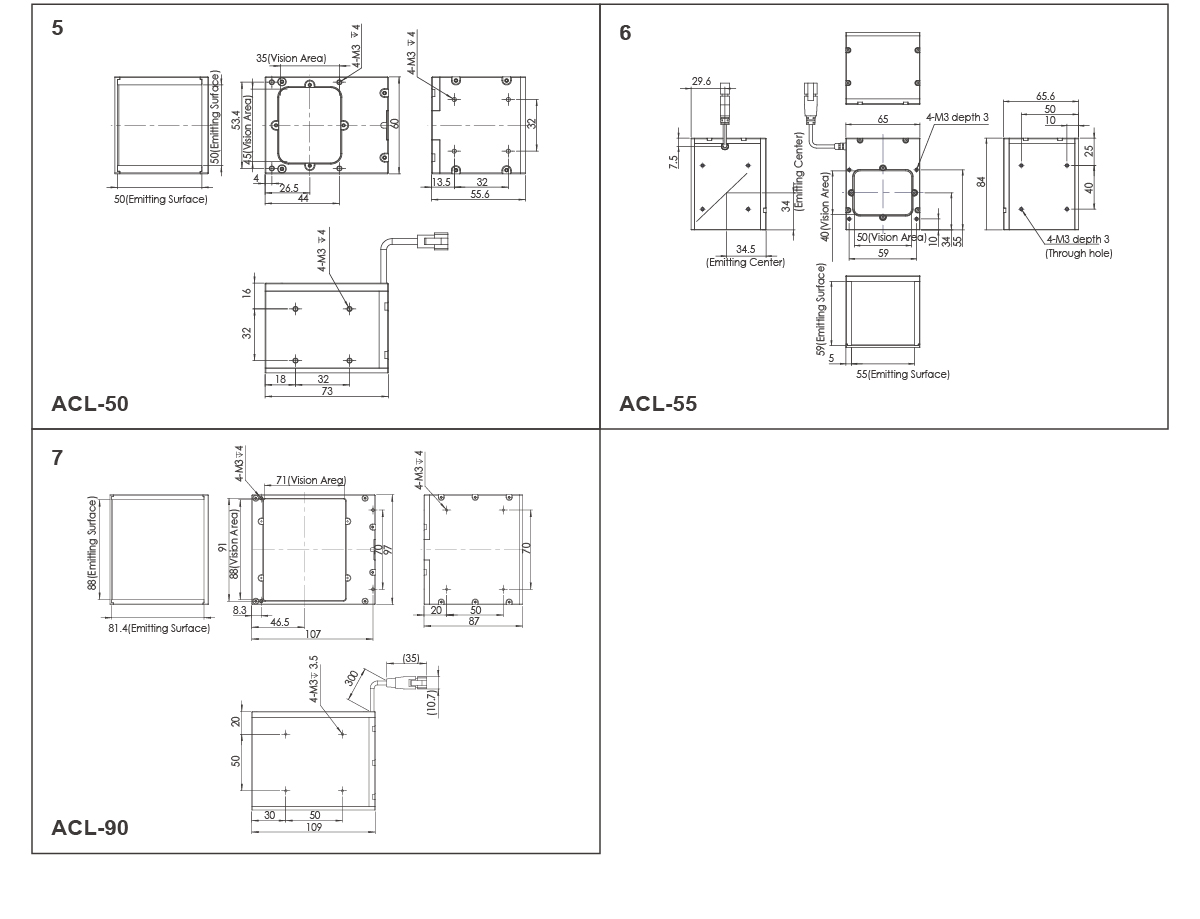

Diagrams |
| ● |
● ● ● |
Length |
Width |
Height |
|
ACL
|
ACL-34X25 |
24V |
● ● ● ● |
2 |
2 |
56 |
40 |
28 |
1 |
| ACL-36X32 |
24V |
● ● ● ● |
2.5 |
2.5 |
50 |
44 |
43 |
2 |
| ACL-40 |
24V |
● ● ● ● |
2.5 |
3.8 |
65 |
50 |
47 |
3 |
| ACL-50 |
24V |
● ● ● ● |
3.5 |
7.2 |
73 |
60 |
55.6 |
4 |
| ACL-55 |
24V |
● ● ● ● |
4.8 |
7.2 |
84 |
65.6 |
65 |
5 |
| ACL-90 |
24V |
● ● ● ● |
15 |
16 |
109 |
97 |
87 |
6 |
