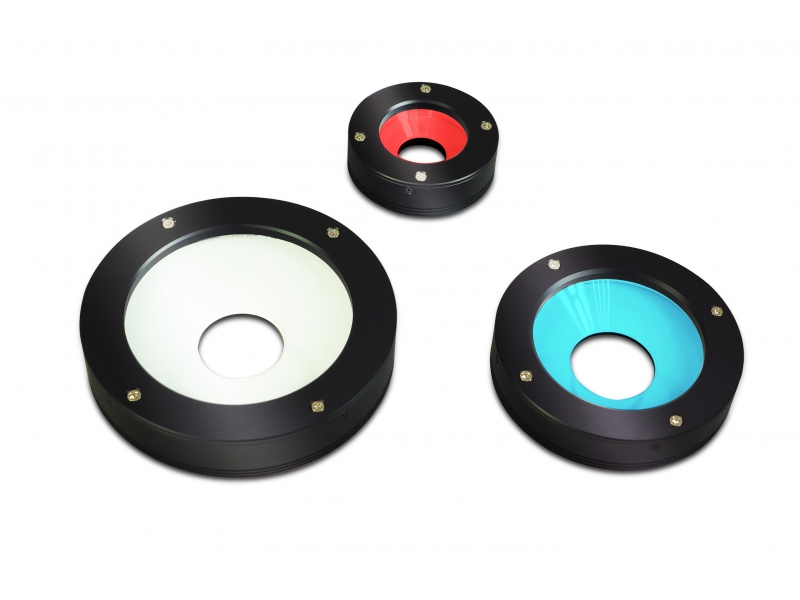

HICNS2 高亮度環型無影光源

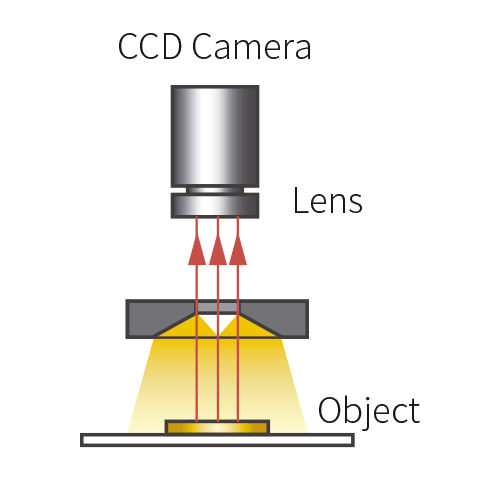

無影光源
- 產品功能:
- 超高亮度漫反射光源設計
- 無LED光影，有效消除反光干擾
- 閃頻可超過1M Lux以上照度
系列規格表

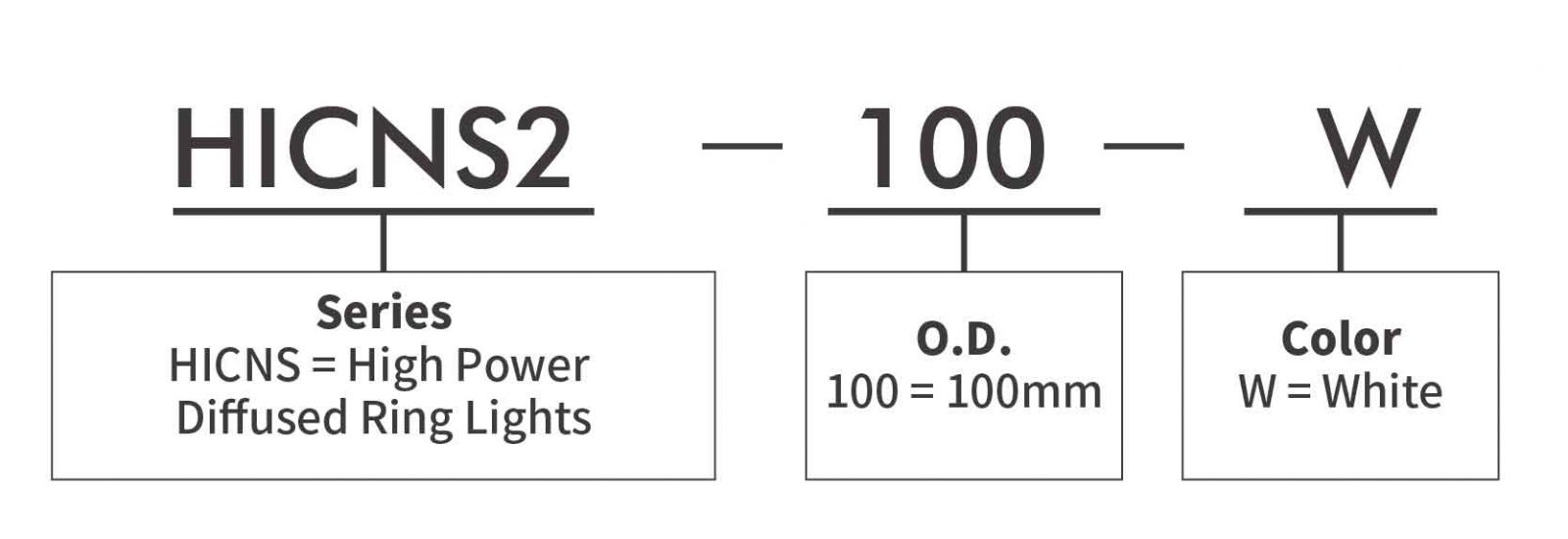

| Series |
Model |
Color |
Current / Power |
Dimensions (mm) |

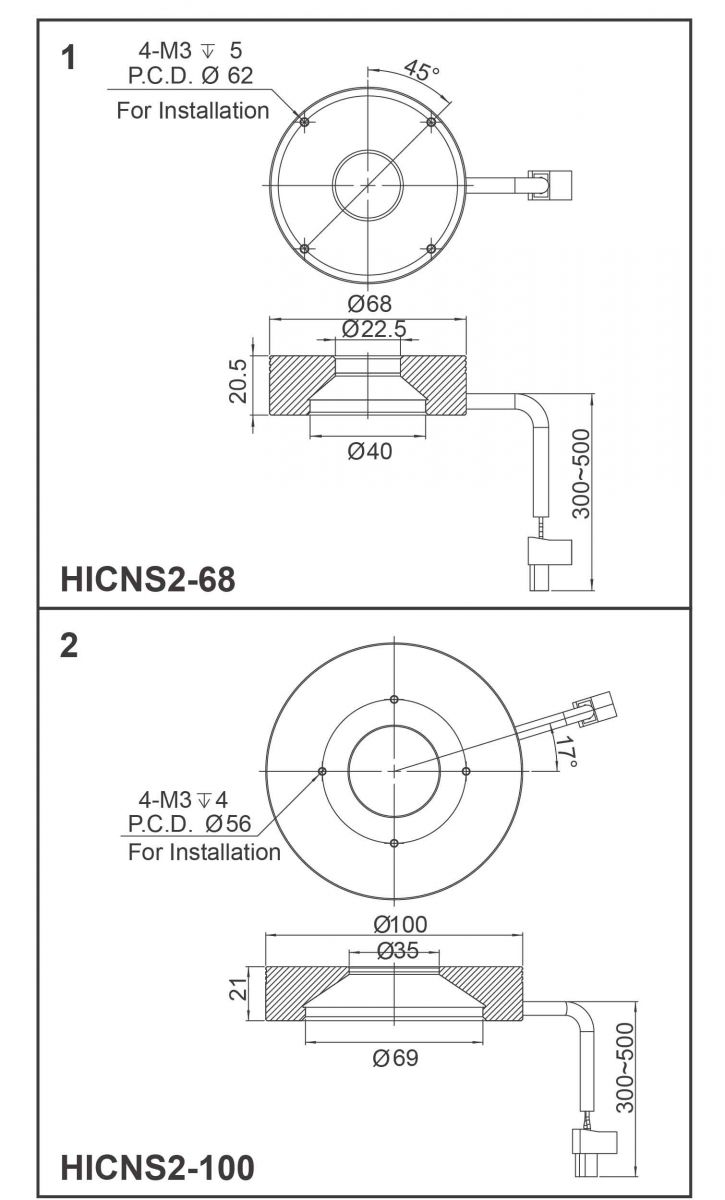

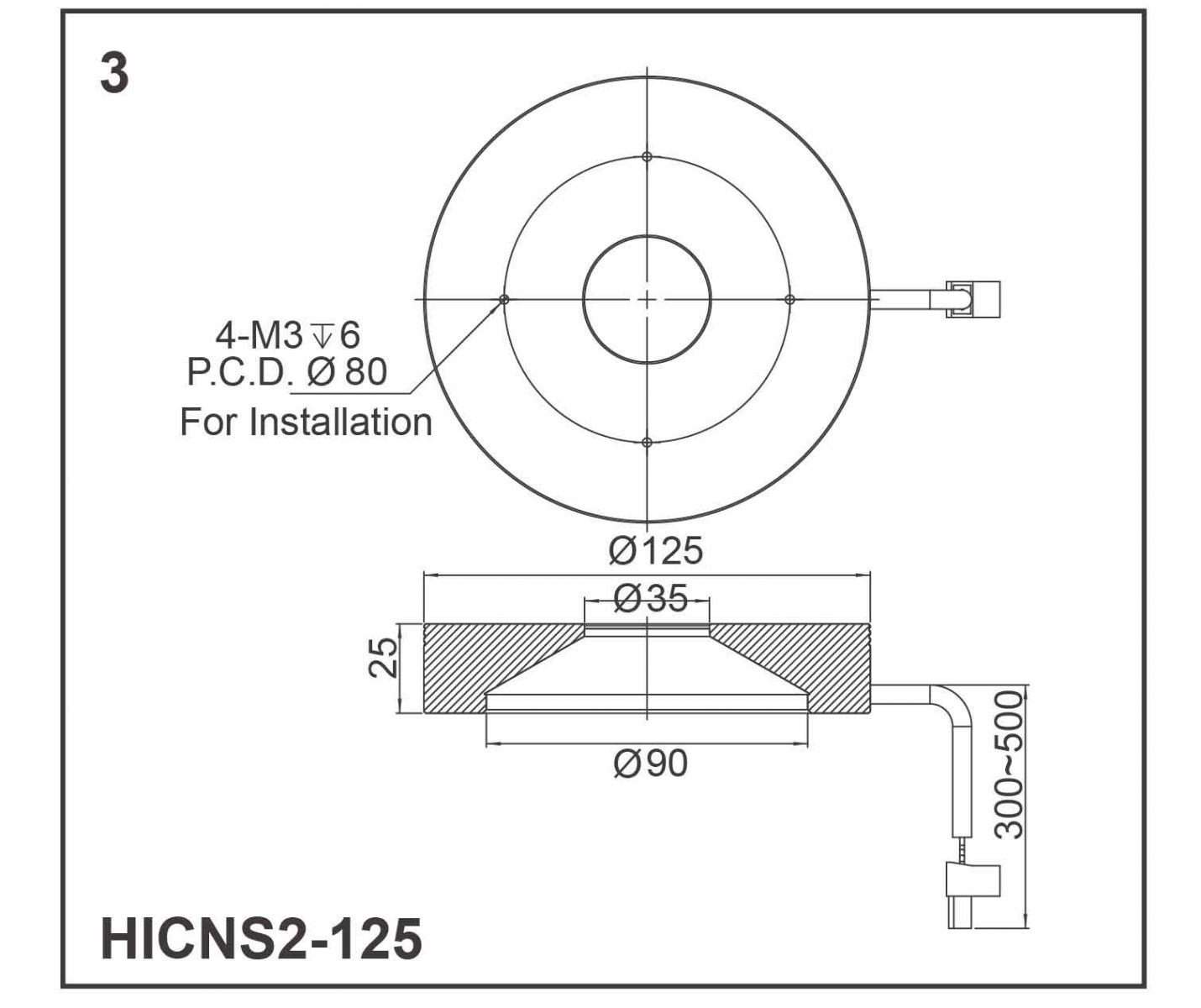

Diagrams |
| O.D. |
I.D. |
Height |
|
HICNS2
|
HICNS2-68 |
● ● ● ● |
Continuous : 0.35A/6.7W
Strobe : 4A/89.5W |
68 |
22.5 |
20.5 |
1 |
| HICNS2-100 |
● ● ● ● |
Continuous : 0.6A/12W
Strobe : 6A/135W |
100 |
35 |
21 |
2 |
| HICNS2-125 |
● ● ● ● |
Continuous : 0.9A/17.5W
Strobe : 8A/182W |
125 |
35 |
25 |
3 |
註：僅限搭配定電流驅動器，並請注意額定電流。
| Power in Different Drive Modes (Watt) |
| Model |
Color |
In continuous
drive mode |
In strobe
drive mode |

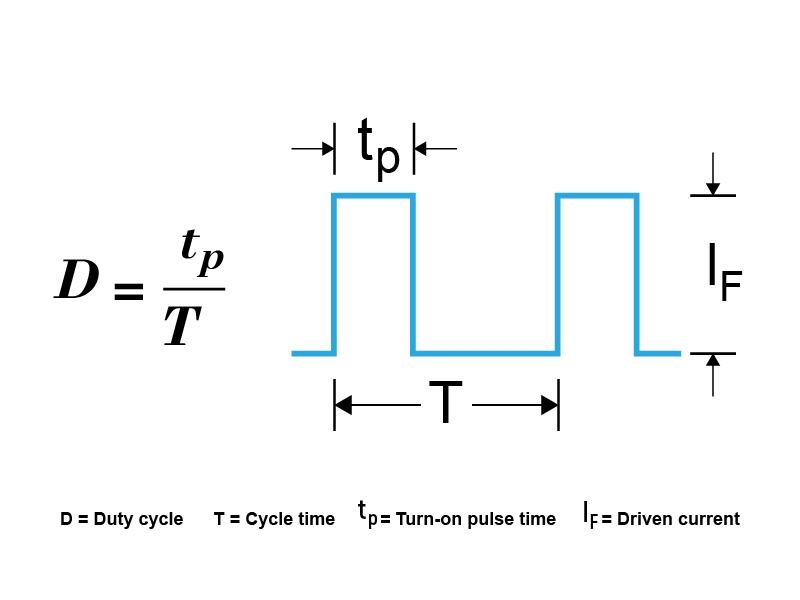

Strobe drive conditions
(Ts = Surface temperature) |
| HICNS2-68-W |
● |
6.7W |
89.5W |
tp≦100mS; D≦0.07; Ts=25℃ |
| HICNS2-100-W |
● |
12W |
135W |
tp≦100mS; D≦0.08; Ts=25℃ |
| HICNS2-125-W |
● |
17.5W |
182W |
tp≦100mS; D≦0.09; Ts=25℃ |
