Machine Vision Solution
LCIR 环型低角度光源
环型光源
- 产品功能:
- 高密度LED阵列、高亮度

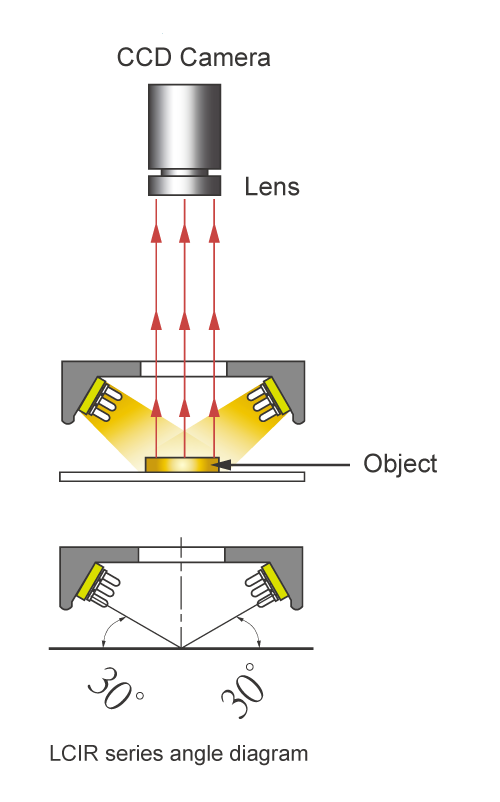

- 可客製LED发光角度与照射角度
- 小型化设计，可缩小安装空间

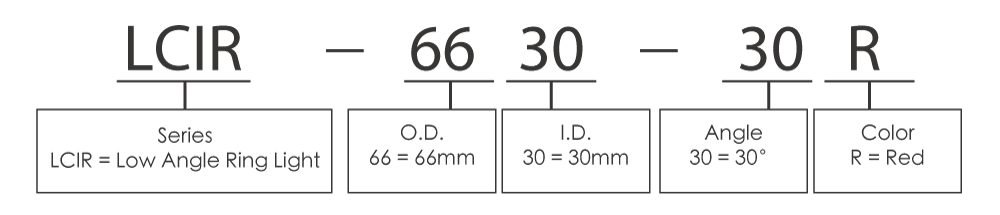

系列规格表
| Series |
Model |
Voltage |
Color |
Power (W) |
Dimensions (mm) |
Diagrams |
| ● |
● ● ● |
O.D. |
I.D. |
Angle |
|
LCIR
|
LCIR-4318-30 |
24V |
● ● ● ● |
2.8 |
3.6 |
43 |
18 |
30 |
1 |
| LCIR-4820-30 |
24V |
● ● ● ● |
1.5 |
2.5 |
48 |
20 |
30 |
2 |
| LCIR-5022-30 |
24V |
● ● ● ● |
1.5 |
2.5 |
50 |
22 |
30 |
3 |
| LCIR-6630-30 |
24V |
● ● ● ● |
3 |
4.5 |
66 |
30 |
30 |
4 |
| LCIR-7446-30 |
24V |
● ● ● ● |
3.5 |
4 |
74 |
46 |
30 |
5 |
| LCIR-10070-30 |
24V |
● ● ● ● |
6.5 |
7 |
100 |
70 |
30 |
6 |
| LCIR-13296-15 |
24V |
● ● ● ● |
7.2 |
12 |
132 |
96 |
15 |
7 |
| LCIR-150120-30 |
24V |
● ● ● ● |
10 |
15.3 |
150 |
120 |
30 |
8 |
| LCIR-170134-20 |
24V |
● ● ● ● |
9.5 |
15.8 |
170 |
134 |
20 |
9 |
| LCIR-180132-30 |
24V |
● ● ● ● |
16.5 |
23 |
180 |
132 |
30 |
10 |
| LCIR-208171-25 |
24V |
● ● ● ● |
11 |
16.5 |
208 |
171 |
25 |
11 |
