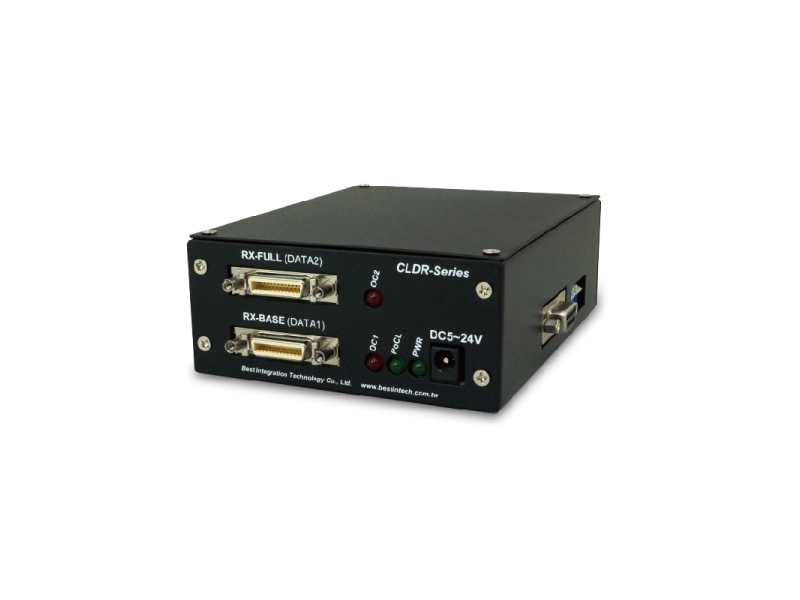

CLDR CameraLink

Camera Duplicator / Repeater

Doubles max distance between camera and frame grabber.
Duplicates a CameraLink™ video input stream into two video output streams.

Product Features:
Doubles the max. distance between camera and frame grabber.
Duplicates a CameraLink video input stream into two video output streams
Supports all CameraLink configurations. (Base, Medium and Full & DECA(80-bit))
Supports PoCL with over-current protection circuits for PoCL Camera.
Uses standard CameraLink MDR cables. (not included)
Uses standard 3M 26-pin MDR type connector. (INx2 & OUTx4)
High-speed 20~85MHz CameraLink interface chipset, works with any CameraLink Camera
Selectable serial interface source from frame grabber 1 or 2
Selectable CC1~CC4 control interface source from frame grabber 1, 2 or external RS422/TTL/COMS input
Optional external power supply

ADD TO INQUIRY DOWNLOAD DM

Product Lineup Table

Features	Specification
		Power Requirements	DC5V~24V / 0.5A (w/o PoCL™ Camera) DC15V~24V / 1A (with PoCL™ Camera)
		Operating Temp. Range	0 to 65˚C (non-freezing)
		Storage Temp. Range	-25˚C~75˚C (non-freezing)
		Relative Humidity	0 to 90% (non-condensing)

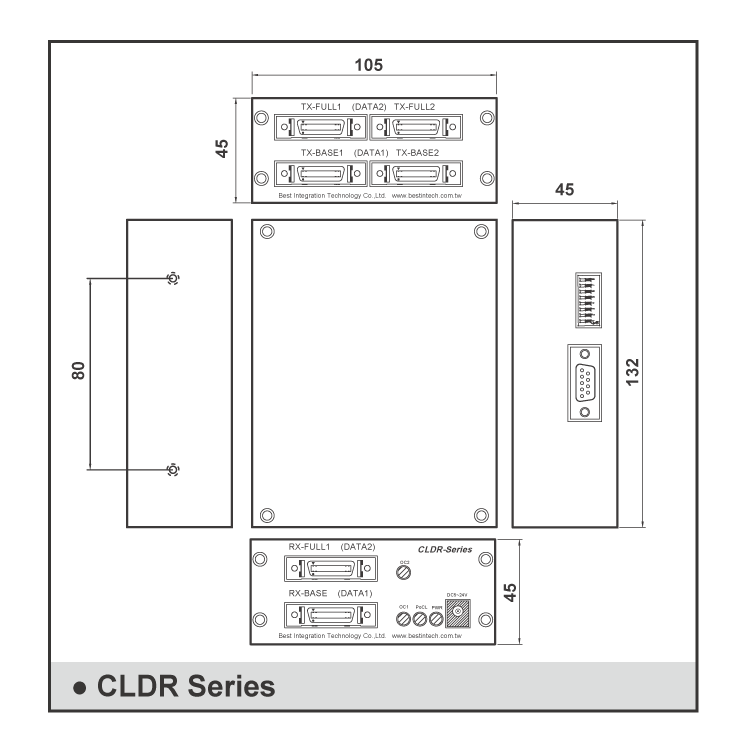

		Cabinet Dimensions	112(W. max.) x 142.5(L. max.) x 48(H. max.) mm
