CIR Ring Lights

Ring Lights
  • Product Features:
  • High density LED array, high brightness
  • Customized LED beam angle and illumination angle available
  • Optional diffuse board to increase the uniformity of lights
ADD TO INQUIRY DOWNLOAD DM

Product Lineup Table

Series Model Voltage Color Power (W) Dimensions (mm) Diagrams
● ● ● ● O.D. I.D. Angle

CIR

 CIR-3210-70 24V ● ● ● ● 1.2 1.5 32 10 70 1
CIR-3514-90 24V ● ● ● ● 1 1.5 35 14 90 2
CIR-4218-65 24V ● ● ● ● 1.5 2 42 18 65 3
CIR-4318-90 24V ● ● ● ● 1.5 2 43 18 90 -
CIR-5024-60 24V ● ● ● ● 1.7 2.5 50 24 60 4
CIR-5025-90 24V ● ● ● ● 2 3.5 50 25 90 5
CIR-5028-75 24V ● ● ● ● 1.7 3 50 28 75 6
CIR-6630-60 24V ● ● ● ● 3.5 5 66 30 60 7
CIR-7035-90 24V ● ● ● ● 4 5.5 70 35 90 8
CIR-7435-60 24V ● ● ● ● 3.5 5 74 35 60 9
CIR-8038-70 24V ● ● ● ● 3.4 4.5 80 38 70 10
CIR-9030-80 24V ● ● ● ● 8 12.8 90 30 80 11
CIR-9050-70 24V ● ● ● ● 6.5 9 90 50 70 12
CIR-11060-60 24V ● ● ● ● 8.5 12 110 60 60 13
CIR-11430-80 24V ● ● ● ● 17.5 24 114 30 80 14
CIR-12060-50 24V ● ● ● ● 15 18 120 60 50 15
CIR-12075-45 24V ● ● ● ● 10.5 11.5 120 75 45 16
CIR-13055-90 24V ● ● ● ● 15.7 21.5 130 55 90 17
CIR-180126-60 24V ● ● ● ● 17.5 24 180 126 60 18

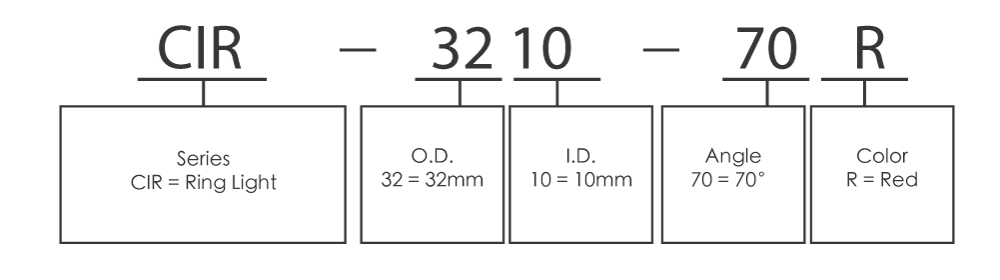

Model Guide

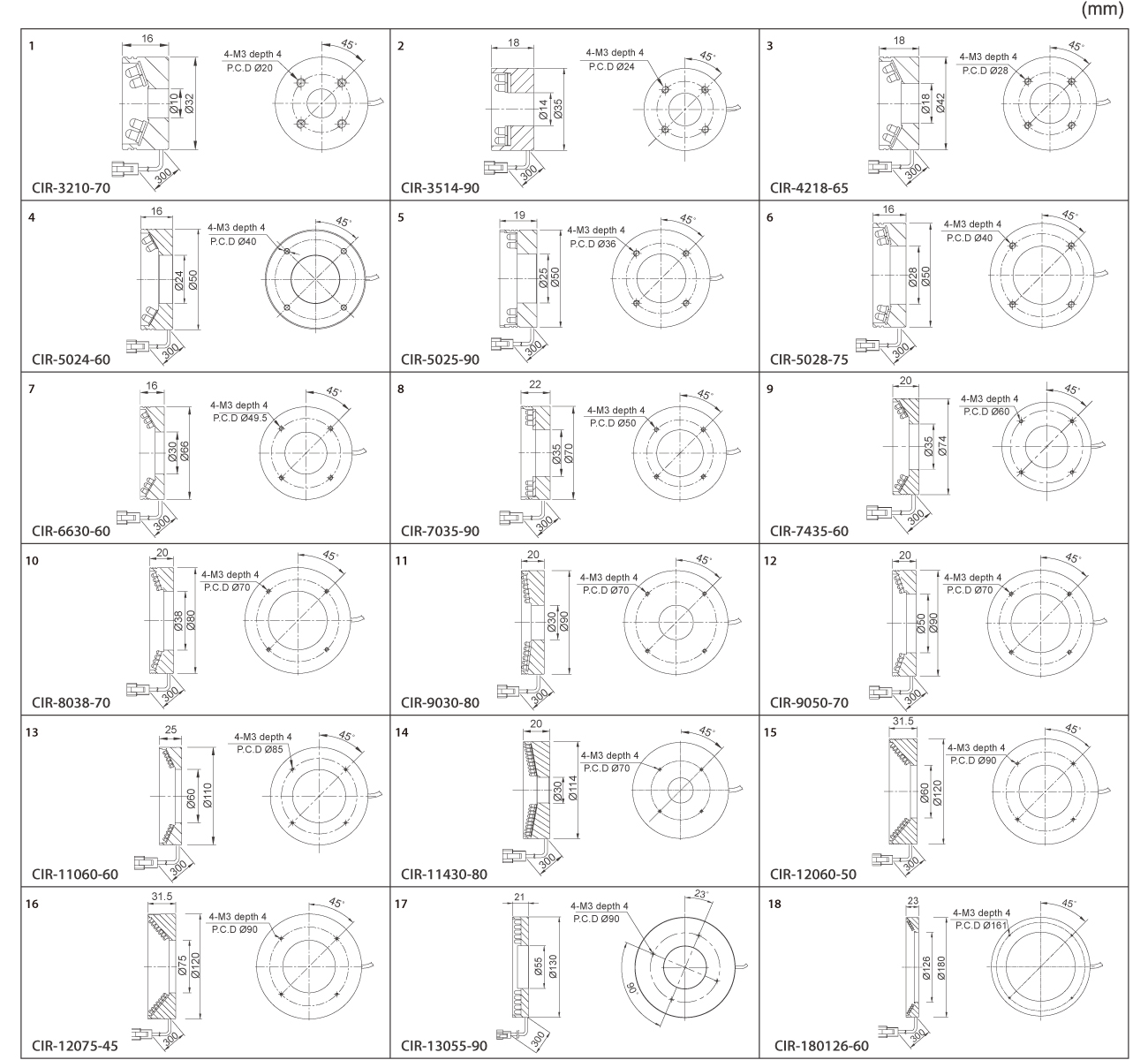

Dimensional Drawing

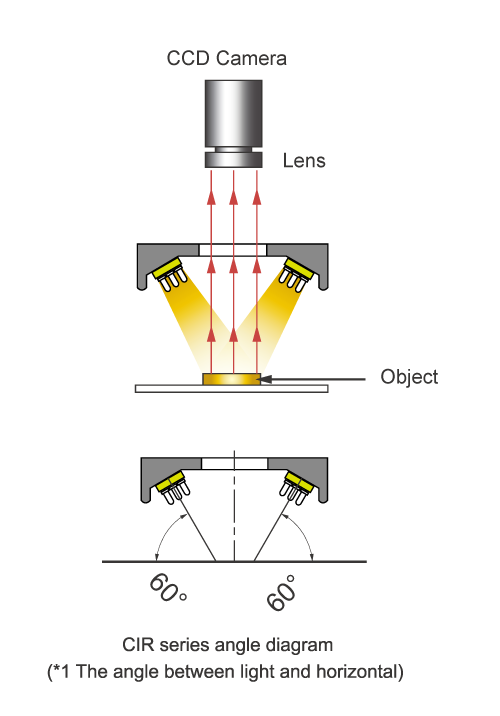

Illumination Structure

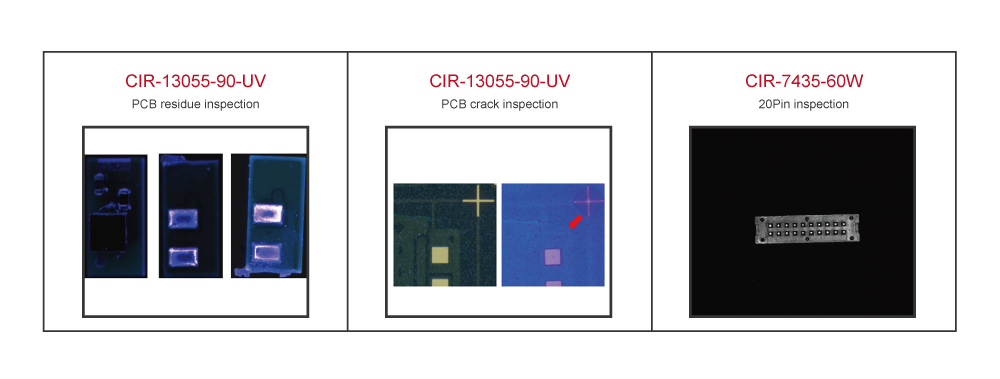

Case Pictures
