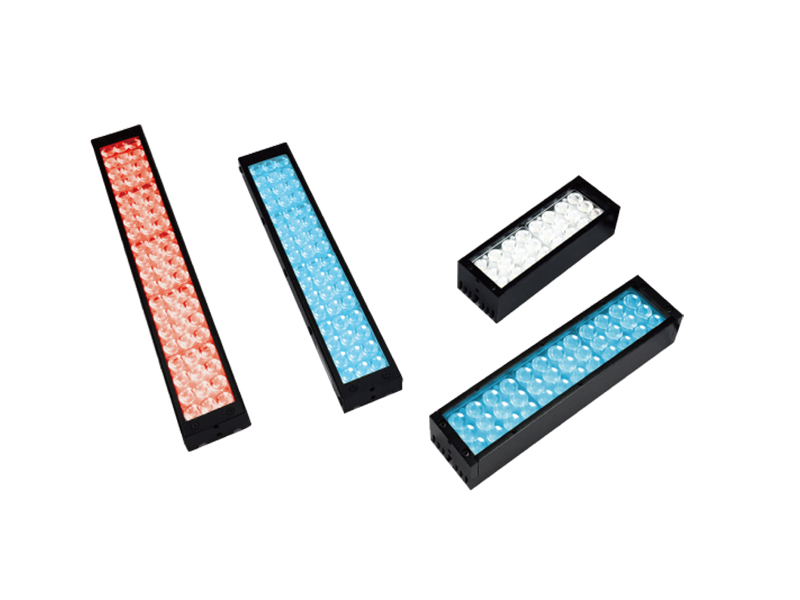

HIREC High Power Bar Lights

Bar Lights
  • Product Features:
  • High power, high brightness, high uniformity
  • High Efficient illumination structure to convey high-directional lightings to the objects
  • Customized emitting area, wavelength and color temperature
  • Optional diffuse board available
ADD TO INQUIRY DOWNLOAD DM

Product Lineup Table

Series Model Color Current / Power No. of Channel Dimensions (mm) Diagrams
Length Width Height

HIREC

 HIREC-47X28 ● ● ● ● 0.25A / 6W 1 59 36 28 1
HIREC-95X28 ● ● ● ● 0.5A / 12W 1 107 36 28 2
HIREC-142X28 ● ● ● ● 0.75A / 18W 1 154 36 28
HIREC-190X28 ● ● ● ● 1A / 24W 1 202 36 28
HIREC-237X28 ● ● ● ● 1.25A /30W 1 249 36 28
HIREC-285X28 ● ● ● ● 1.5A / 36W 1 297 36 28
HIREC-380X28 ● ● ● ● 2A / 48W 1 392 36 28
HIREC-474X28 ● ● ● ● 1.25A / 60W 2 486 36 28

Remarks : Only operated by constant current LED driver, and please pay attention to rated current

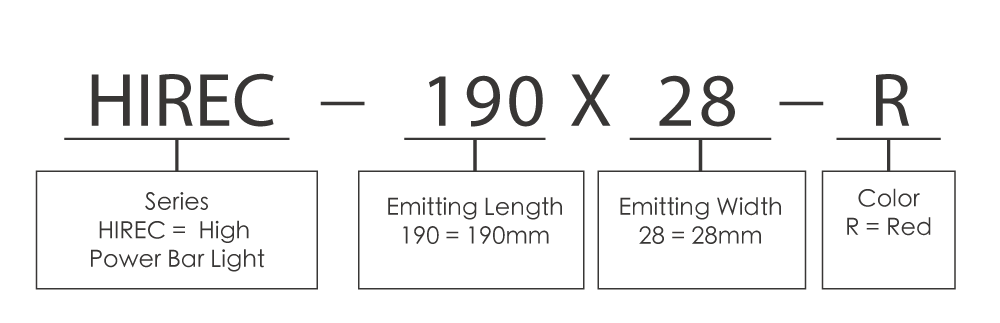

Model Guide

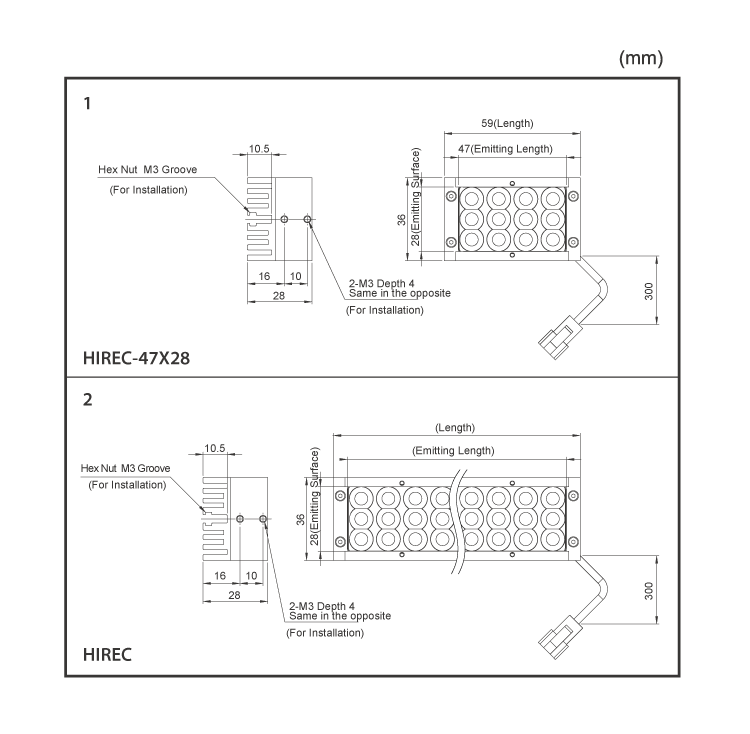

Dimensional Drawing

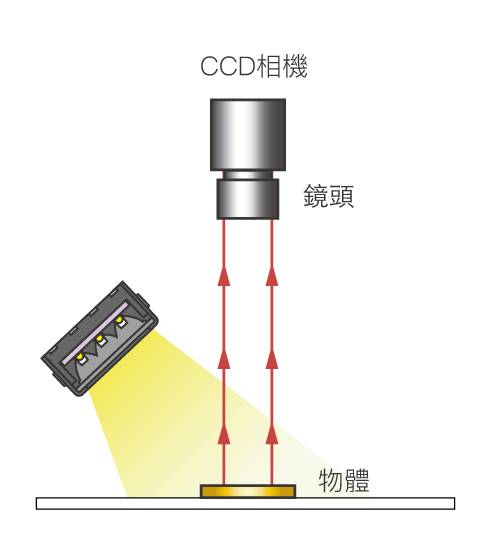

Illumination Structure

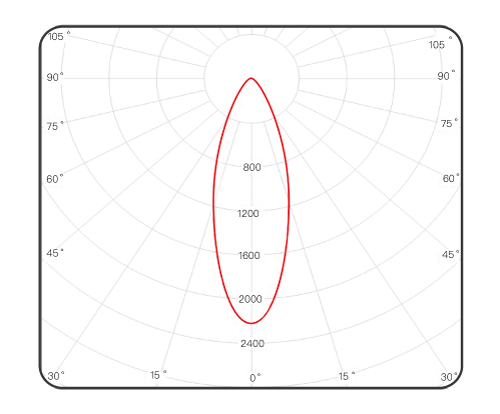

Illuminated angle diagram

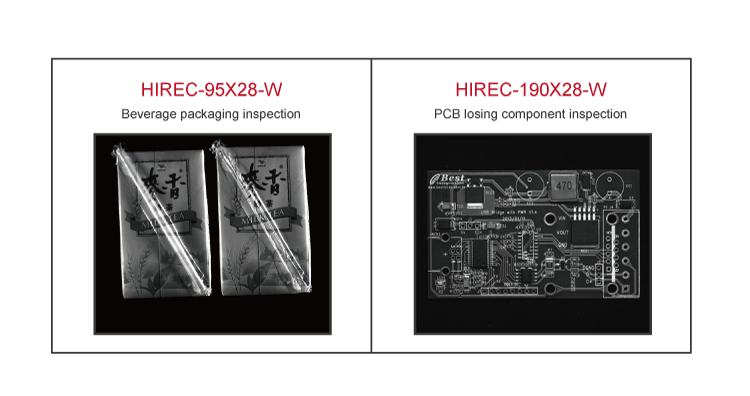

Case Pictures
