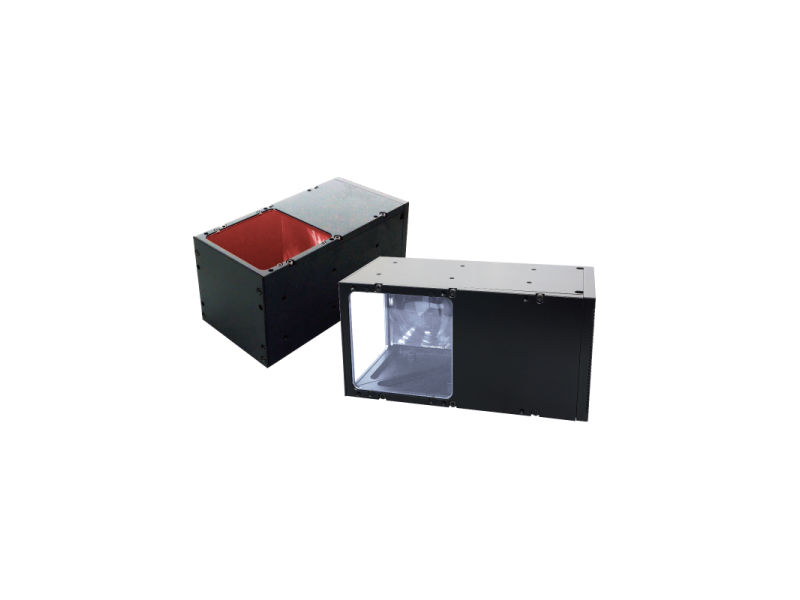

PBCL Parallel Coaxial Backlights

Coaxial Lights
  • Product Features:
  • Provide high level of parallel light beam, divergent angle is less than ±1 degree
  • Easier to take high contrast pictures for contour analysis
  • Illumination difference is less than 5% at 200mm working distance
ADD TO INQUIRY DOWNLOAD DM

Product Lineup Table

Series Model Color Current / Power Dimensions (mm) Diagrams
Length Width Height
PBCL PBCL-30 ● ● ● ● 0.7A / 3W 73 40 29 1
PBCL-50 ● ● ● ● 0.5A / 6W 130.8 69 65.8 2
PBCL-80 ● ● ● ● 1.5A / 5W 190 95 90 3
Remarks : Only operated by constant current LED driver, and please pay attention to rated current

Model Guide

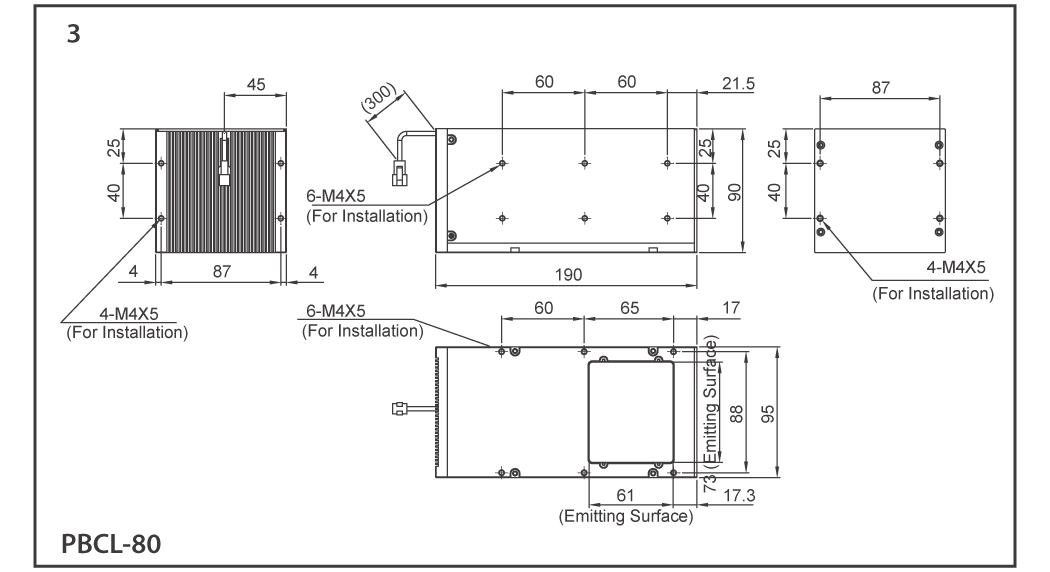

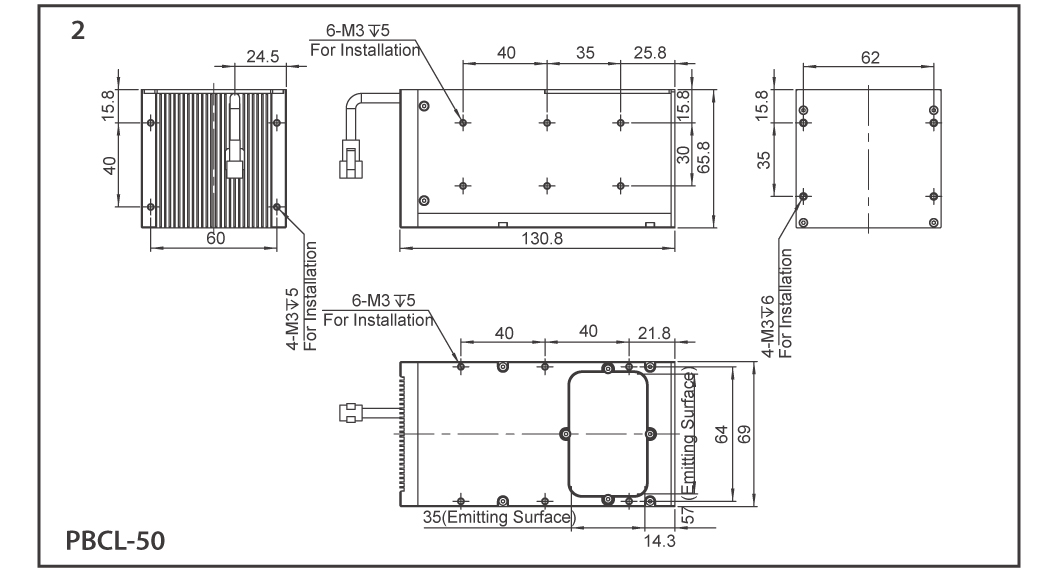

Dimensional Drawing

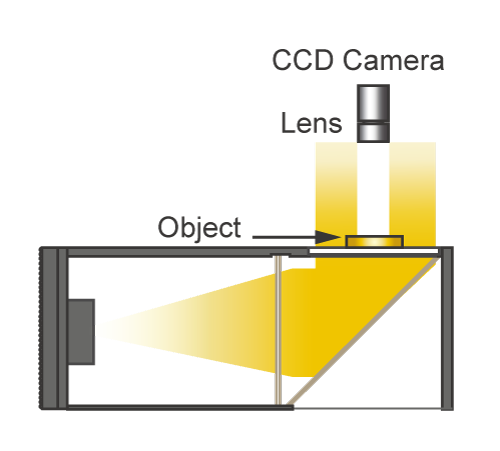

Illumination Structure


Illumination Analysis

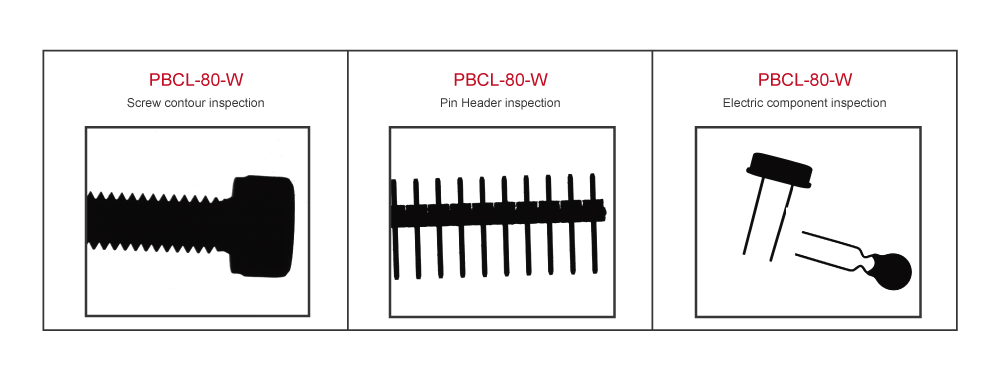

Case Pictures
