MDHV
Closed-loop Stepping System

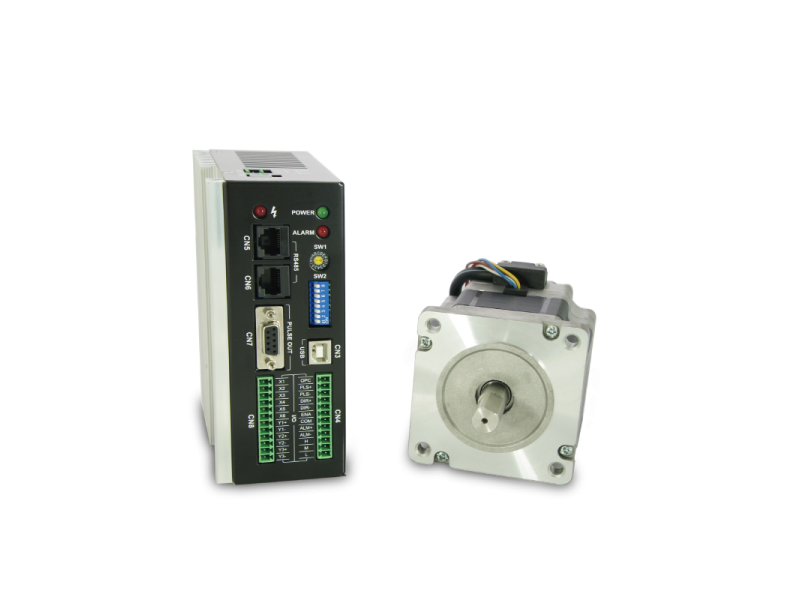

This product, 3-phase and high voltage stepping system from MDHV series designed by Bestintech, adopts high-speed DSP closed-loop control design to completely improve the out-of-step phenomenon from stepping motor when over-loading and high-revolution; besides, it can increase the accurate stability and reliability when using. The low-speed performance is better than servo motor. With the USB/RS485 communication design, it efficiently simplifies the system complexity and integrates all functions and programmable design for motion control to reach motion control process without motion control card or PLC.
- Product Features:
- Two communication interface available：USB2.0 / RS-485
- Programmable motion instructions：Be able to work without PC or PLC
- Build-in acceleration and deceleration curves：Parameterized S-curve and T-curve
- Closed-loop control：
- ▲MDLV：2048/2500PPR Encoder, up to 8192/10000 resolution
- ▲MDHV：2500PPR Encoder, up to 10000 resolution
- Dynamic compensating mechanism：Compensation adjustment of position and current, accurate high-speed positioning and no miss-stepping
- Stepping motor system：Using 3-phase stepping motor that is more stable and fully compatible with Servo (MDLV) or AC-Servo (MDHV)
- Protection and alarming mechanism：Emergency-stop, over-loading, overshoot, over-heat protection and ALM output
- Supports 10-point (MDLV) / 4-Point (MDHV) programmable output：Be able to complete ALM, INP and external I/O control
- Supports 8-point (MDLV) / 7-point (MDHV) programmable input：Be able to complete home(origin) return, limit+ and limit- protection, emergency-stop, normal-stop, driver enable, and in-position slowdown command
- Compatibility of pulse input：Supports differential pulse input (open-loop only)
