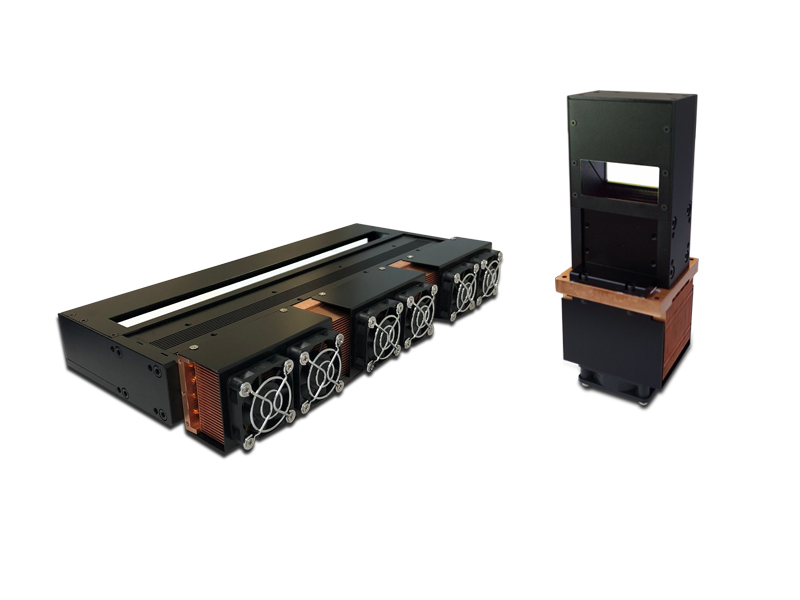

CHILL 高亮度同軸線光源
線光源
- 產品功能:
- 適用於高速/高解析度的Line Scan取像
- 超高亮度，高功率，可達6M Lux
- 可選配內建散熱風扇與溫度監控模組提供熱管理
系列規格表
| Series |
Model |
Color |
Current / Power |
No. of Channel |
Dimensions (mm) |

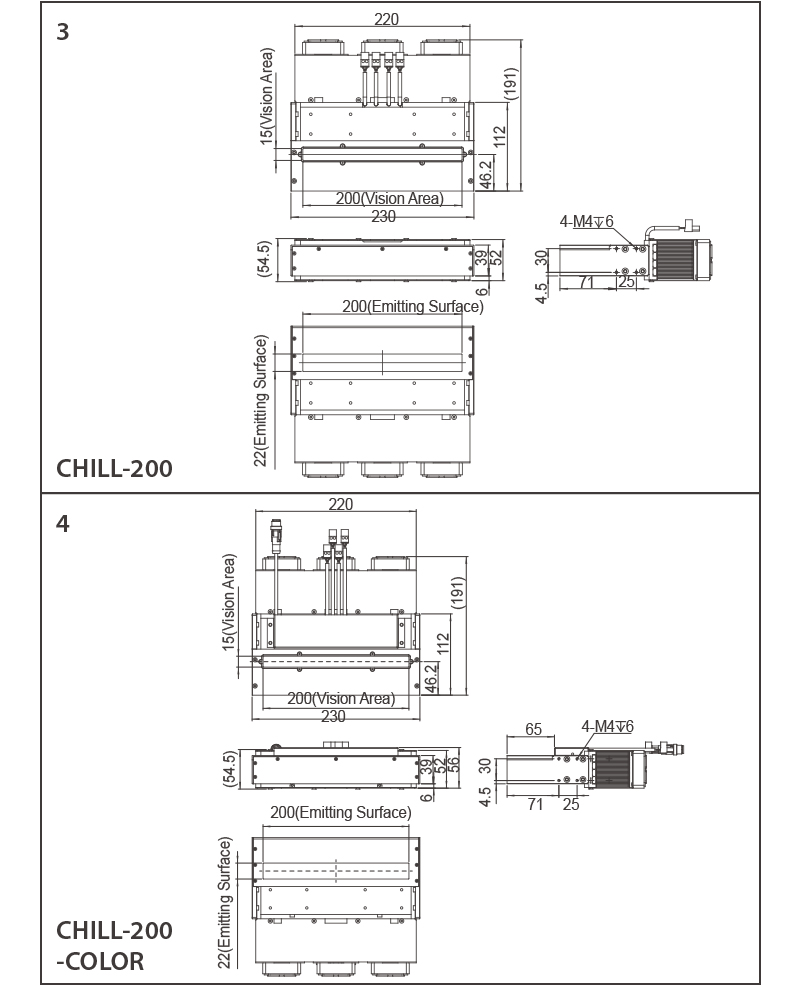

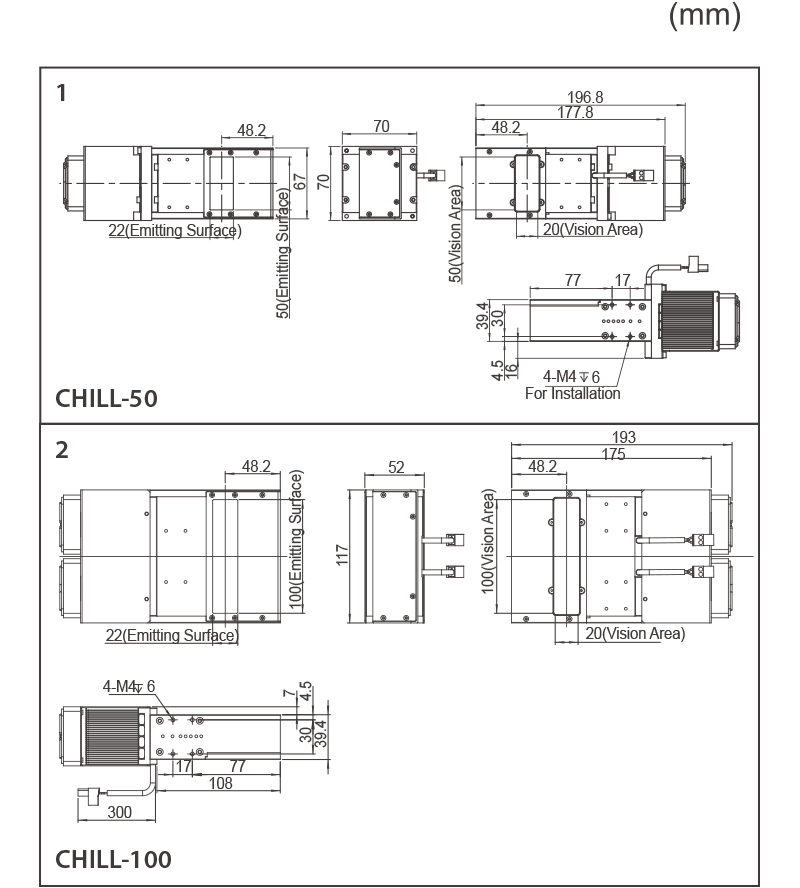

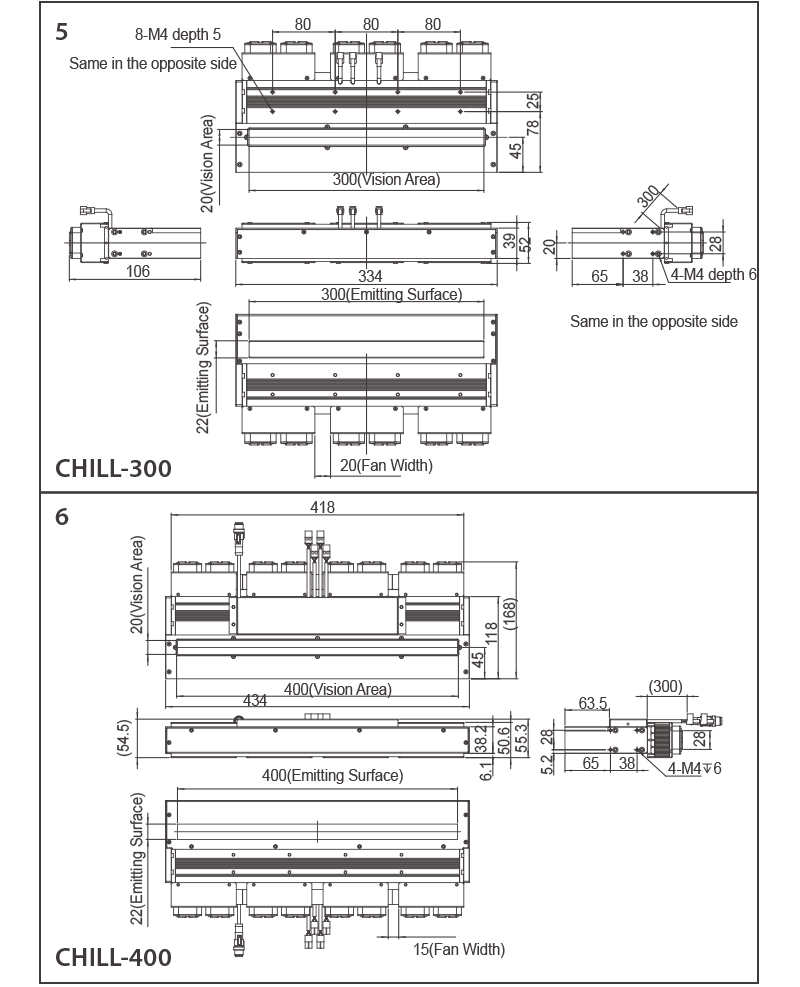

Diagrams |
| Length |
Width |
Height |
|
CHILL
|
CHILL-50 |
● ● ● ● |
3A / 100W |
1 |
196.8 |
70 |
70 |
1 |
| CHILL-100 |
● ● ● ● |
2.5A / 180W |
2 |
193 |
117 |
52 |
2 |
| CHILL-200 |
● ● ● ● |
2A / 288W |
4 |
220 |
191 |
54.5 |
3 |
| CHILL-200 |
COLOR |
2A / 240W |
4 |
220 |
191 |
54.5 |
4 |
| CHILL-300 |
● ● ● |
2.5A / 300W |
3 |
334 |
106 |
52 |
5 |
| ● |
2A / 300W |
| CHILL-400 |
● ● ● |
2.5A / 400W |
4 |
418 |
168 |
54.5 |
6 |
| ● |
2A / 240W |
註：僅限搭配定電流驅動器，並請注意額定電流。
