CLL 同軸線光源
線光源
- 產品功能:
- 適用於高速/高解析度的Line Scan取像
- F80為聚焦光型，PAR為平行光型
- 超高均勻度，低成本，200K~500K Lux
- 優異高亮度，不需要散熱風扇

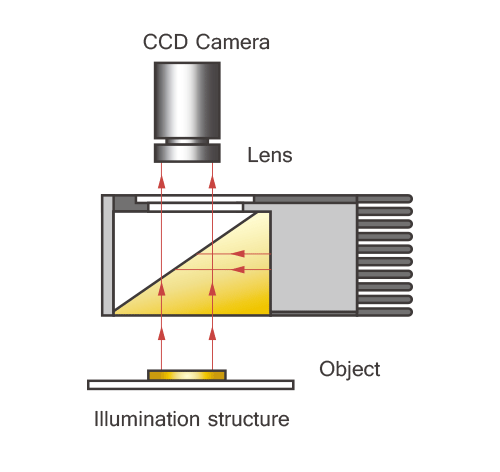

- 可應用於線掃描的同軸型式
系列規格表
| Series |
Model |
Color |
Current / Power |
Dimensions (mm) |

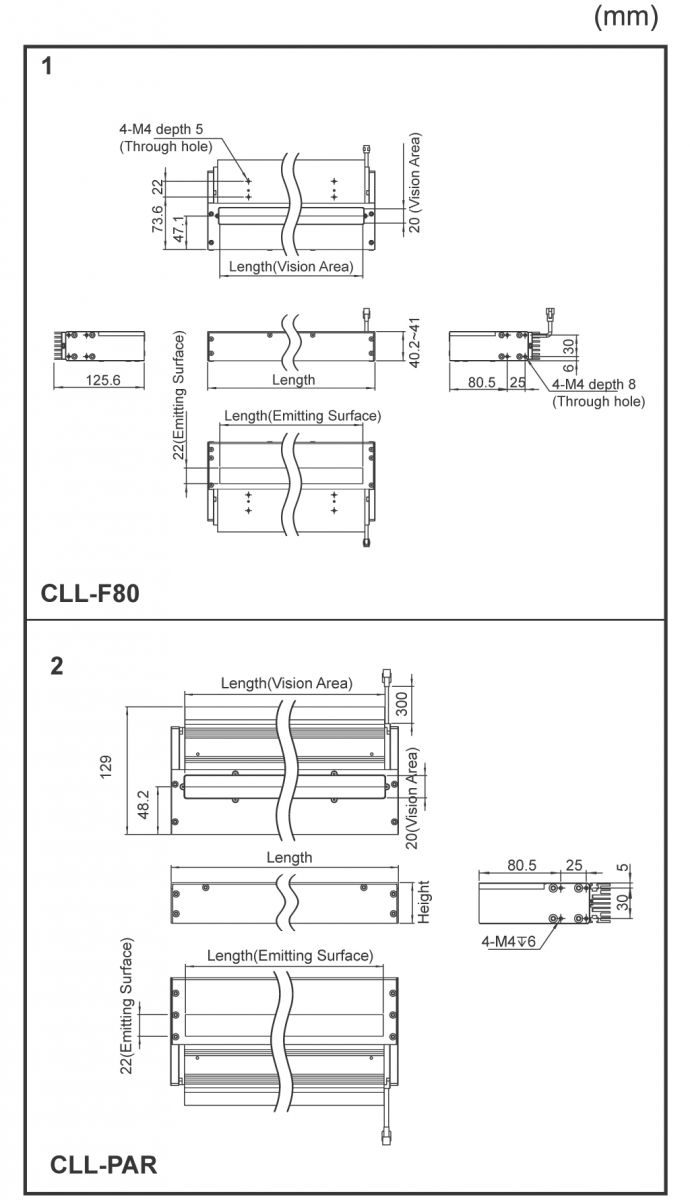

Diagrams |
| Length |
Width |
Height |
|
CLL
|
CLL-100-F80 |
● ● ● ● |
0.25A / 10W |
134 |
125.6 |
41 |
1 |
| CLL-200-F80 |
● ● ● ● |
0.5A / 20W |
234 |
125.6 |
41 |
1 |
| CLL-300-F80 |
● ● ● ● |
0.75A / 30W |
334 |
125.6 |
40.2 |
1 |
| CLL-400-F80 |
● ● ● ● |
1A / 40W |
434 |
125.6 |
40.2 |
1 |
| CLL-500-F80 |
● ● ● ● |
1.2A / 60W |
534 |
125.6 |
40.2 |
1 |
| CLL-100-PAR |
● ● ● ● |
0.25A / 10W |
130 |
129 |
41 |
2 |
| CLL-150-PAR |
● ● ● ● |
0.5A / 20W |
176 |
128.5 |
41 |
2 |
| CLL-200-PAR |
● ● ● ● |
0.5A / 20W |
230 |
129 |
41 |
2 |
| CLL-300-PAR |
● ● ● ● |
0.75A / 30W |
330 |
129 |
40.2 |
2 |
| CLL-400-PAR |
● ● ● ● |
1A / 40W |
430 |
129 |
40.2 |
2 |
| CLL-500-PAR |
● ● ● ● |
1.2A / 60W |
530 |
129 |
40.2 |
2 |
註：僅限搭配定電流驅動器，並請注意額定電流。
