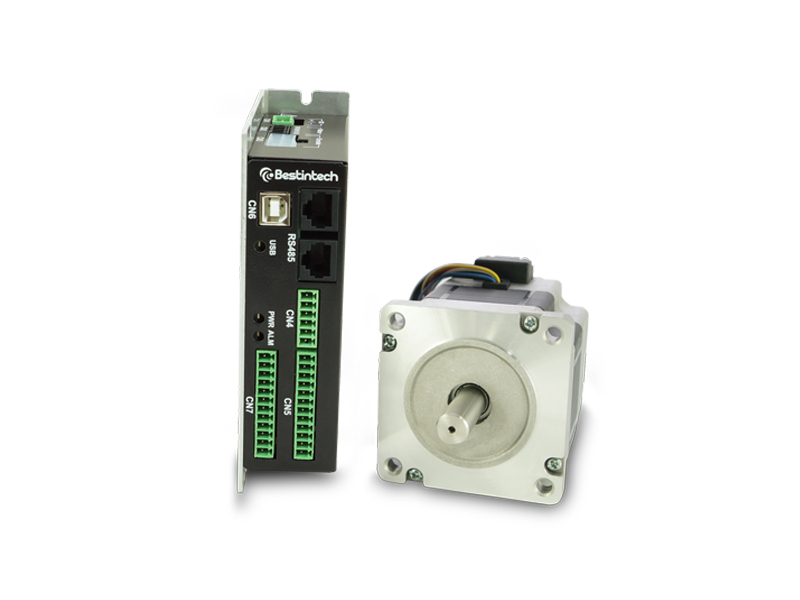

MDLV2

Closed-loop Stepping System
This product, 3-phase and high-frequency stepping system from MDLV series designed by Best Integration Technology Co., Ltd, possesses four main features.
1. Adopt high-speed DSP closed-loop control design to be more precise and reliable when using.
2. Adopt high-frequency driving way.
3. Super-high frequency drive circuit.
4. With the USB/RS485 communication design, it efficiently simplifies the system complexity to let user reach motion control process without motion control card or PLC.
  • Product Features:
  • Two communication interface available:USB2.0 / RS-485
  • Programmable motion instructions:Be able to work without PC or PLC
  • Build-in acceleration and deceleration curves:Parameterized S-curve and T-curve
  • Closed-loop control:
  • ▲MDLV2:2048/2500PPR Encoder, up to 8192/10000 resolution
  • ▲MDHV:2500PPR Encoder, up to 10000 resolution
  • Dynamic compensating mechanism:Compensation adjustment of position and current, accurate high-speed positioning and no miss-stepping
  • Stepping motor system:Using 3-phase stepping motor that is more stable and fully compatible with Servo (MDLV2) or AC-Servo (MDHV)
  • Protection and alarming mechanism:Emergency-stop, over-loading, overshoot, over-heat protection and ALM output
  • Supports 10-point (MDLV2) / 4-Point (MDHV) programmable output:Be able to complete ALM, INP and external I/O control
  • Supports 8-point (MDLV2) / 7-point (MDHV) programmable input:Be able to complete home(origin) return, limit+ and limit- protection, emergency-stop, normal-stop, driver enable, and in-position slowdown command
  • Compatibility of pulse input:Supports differential pulse input (open-loop only)

Product Lineup Table

Model Weight (kg) Dimension (max. mm) Model Type Motor Type Encoder Type
MDLV2
0.33 142(W) x 86(L) x 37(H)
without expansion
connectors
MDLV-3M68-2048 3M68 2048PPR / 8192 rev.
MDLV-3M610-2048 3M610 2048PPR / 8192 rev.
MDLV-3M68-2500  3M68 2500PPR / 10000 rev.
MDLV-3M610-2500 3M610 2500PPR / 10000 rev.

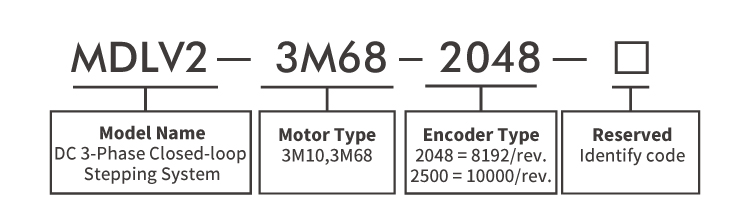

Model Guide

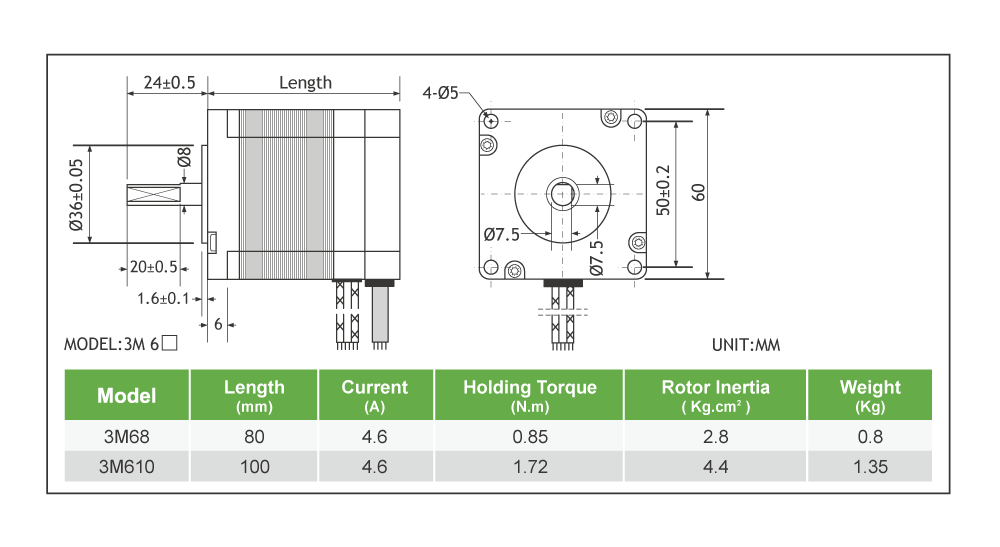

MDLV Motor Dimensional Drawing & Motor Specification Table
